This single-colour mini LED spotlight is available from our stunning range of Mi-Light products. Providing a lumen rating of 154.7LM, it is perfect for achieving subtle and modern lighting.

This small LED spotlight runs at 3W, featuring a beautiful daylight white with a colour temperature of 3900-4100K. This small spotlight can be fully dimmed, ensuring control over the lighting aesthetic.

Our MiLight MiBoxer mini downlights are long-lasting and reliable products, perfect for lighting in both commercial and domestic projects. It has a narrow 36-degree beam angle which will achieve a spot-light effect, the perfect solution for applications that require focused light.

Installation
The downlighter is housed in an aluminium IP66-rated case. This makes it perfect for use both indoors and outdoors in wet or damp environments.

Our mini spotlight has a diameter of 42 with a height of 36mm. A void with a diameter of 36mm is required to instal this miniature LED downlight. Push the downlighter through the hole and clip it into place with the attached spring-loaded wings. This will hold the lights firmly in position.

Note: It is important that enough ventilation is available around the light. It is not recommended to cover them with insulating materials such as loft insulation.

Multiple mini spotlights can be connected, up to a maximum of 20 so that they can be controlled together. The first downlighter in the chain will require a 2-core starter cable, and subsequent downlighters will require a 2-core link cable.

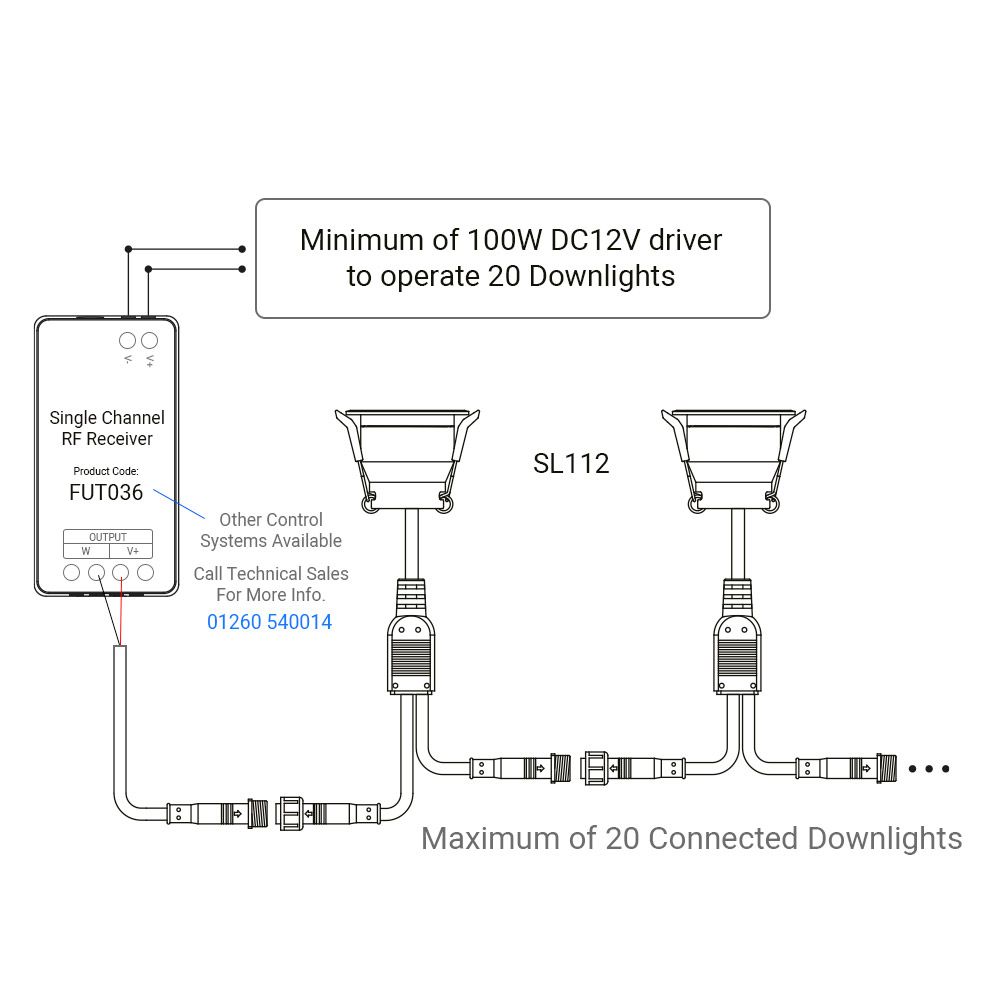

Mini Downlights Connection Diagram

Compatible Mi-Light LED controllers & additional lighting are sold separately.

For more information on this product and control options, please contact our sales team. Simply Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Downlights through our website or contact our technical sales team.

Download Datasheet - SL113 Specification Sheet

Technical Specification
Product Code:    SL113
Product Packed:    Gift box
Manufacturer:    Mi-Light / MiBoxer
Product Type:    Downlight
Colour:    Daylight White
IP Rating:    IP66 Splashproof
Colour Temperature:    3900 - 4100K
Guarantee Period:    5 Years
Wattage:    3W
Current:    0.1881A
Input Voltage:    12V DC
Connectivity:    RF
Size:    ø42 X 52mm Width X 36mm Height
Beam Angle:    36 degree
CRI Rating (greater than):    CRI >80
Dimmable:    Yes
Average LED life Hrs:    50,000
Power Factor >:    1.0
Wireless Range:    Up to 30 metres
Operation Frequency:    2.4GHz
Operating Temp:    -10 to 40ºC
Luminous Flux:    154.7LM
Light Efficiency:    65.56LM/W
