    FUT061 MiBoxer 9W RGB+CCT AC100-240V LED Downlight

    $69.99
      (5 Reviews) | Write a review

    Part Number:FUT061



    Choose options above to see availability
    checkmark

    Free Shipping

    No minimum purchase required.
    checkmark

    Worry-free Returns

    - 30 day return policy

    This colour-changing LED round recessed downlight is available from our magnificent range of Mi-light products. Providing a lumen rating of 720LM, this is the perfect lighting solution for functional or ambient lighting.

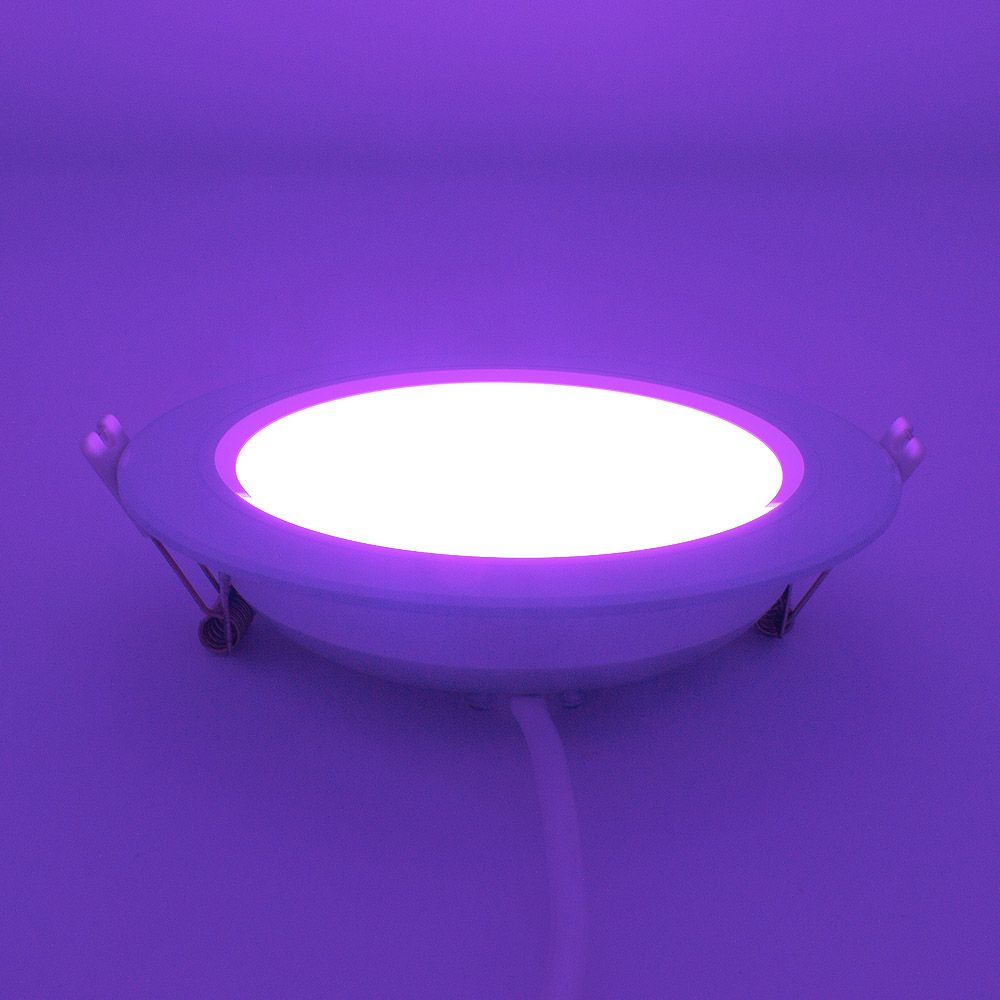

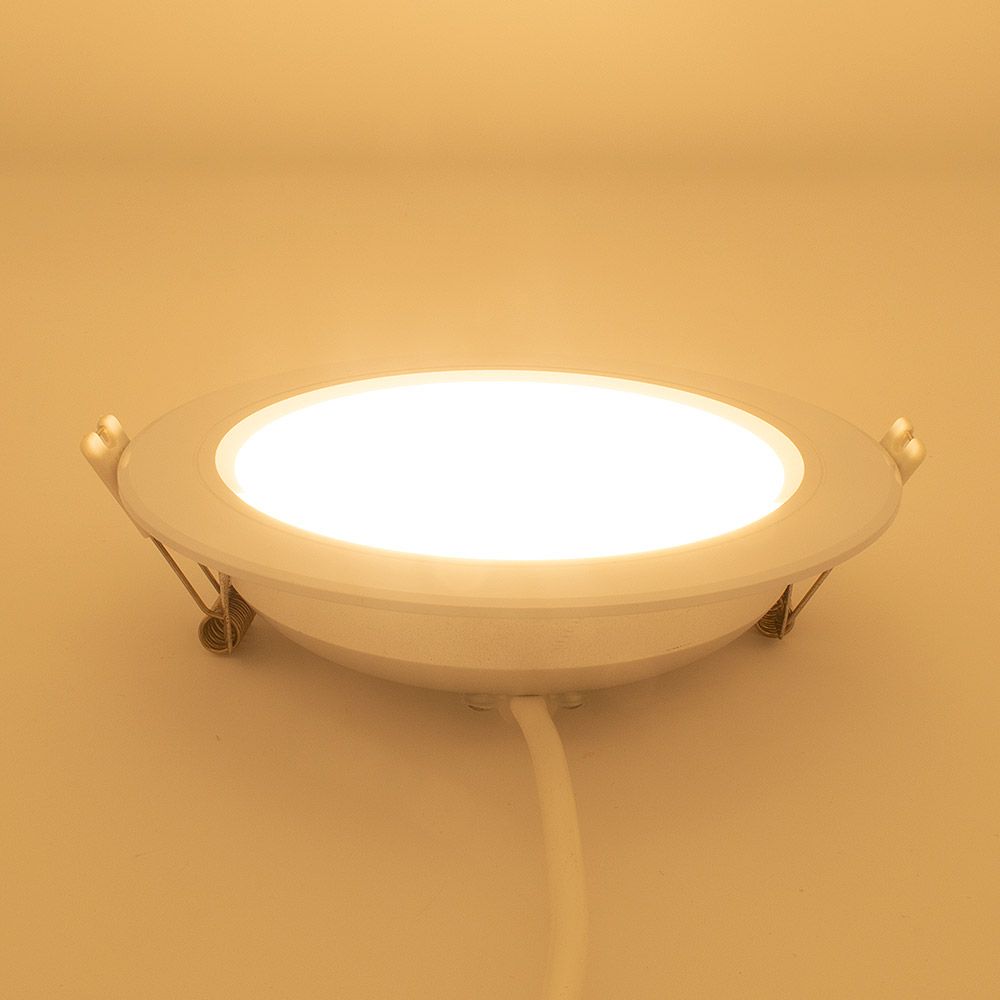

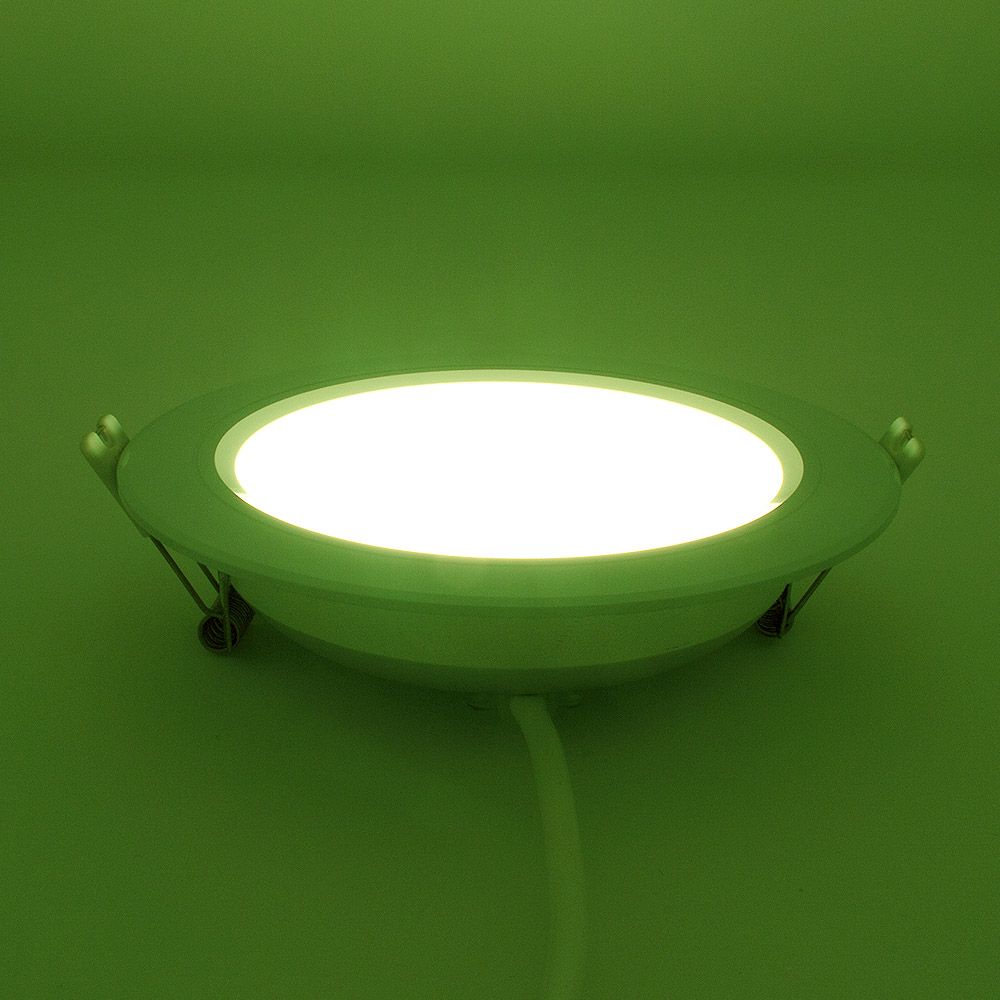

    Our LED round downlight runs at 9w, emitting an elegant beam of colour. With the ability to produce over 16 million colours, this round recessed LED downlight enables complete control over the lighting effect including colour temperature control between cool white (6500K) to warm white (2700K) and brightness control.

    Our MiLight MiBoxer round downlights are quality light solutions designed to be long-lasting and dependable. This downlight has a wide beam angle of 120 degrees, creating a flood of light over a large space.

    Installation
    This round LED downlight is designed for interior design due to its IP20 non-waterproof rating.

    This downlight has a diameter of 138mm and a height of 40mm. A void of 110mm and a depth of 125mm is required to install this round downlight. Simply place the LED driver and cables into the void, then push the two spring clips and anchor them to the ceiling.

    The Mi-Light control system features “Signal Transmitting & Mode sync”, which enables each LED light to re-transmit a control signal. This creates a MESH network where all downlights in the network will synchronise together wirelessly.

    Controlling Mi-light downlights is simple from a single 2.4G RF remote control Mi-Light Handset or Mi-Light Wall panel or from the MiLight app.

    For more information on this product and control options, please contact our sales team. Simply Call, email or use our online live chat to talk to our technical sales team.

    Shop our range of LED Downlights through our website or contact our technical sales team.


    Download Datasheet - FUT061 Specification Sheet


    Technical Specification
    Product Code:    FUT061
    Product Packed:    Gift box
    Manufacturer:    Mi-Light / MiBoxer
    Product Type:    Downlight
    Colour:    RGB / CW & WW
    IP Rating:    IP20 Non-Waterproof
    Colour Temperature:    2700 - 6500K
    Guarantee Period:    5 Years
    Wattage:    9W
    Input Voltage:    100V - 240V AC
    Connectivity:    RF
    Size:    ø138 X 40mm Height
    Beam Angle:    120 degree
    CRI Rating (greater than):    CRI >80
    Dimmable:    Yes
    Average LED life Hrs:    50,000
    Power Factor >:    0.5
    Wireless Range:    Up to 30 metres
    Operation Frequency:    2.4GHz
    Operating Temp:    -20~60°C
    Luminous Flux:    720LM
    Light Efficiency:    80LM/W
    Smart Synchronisation:    Version 2.0
