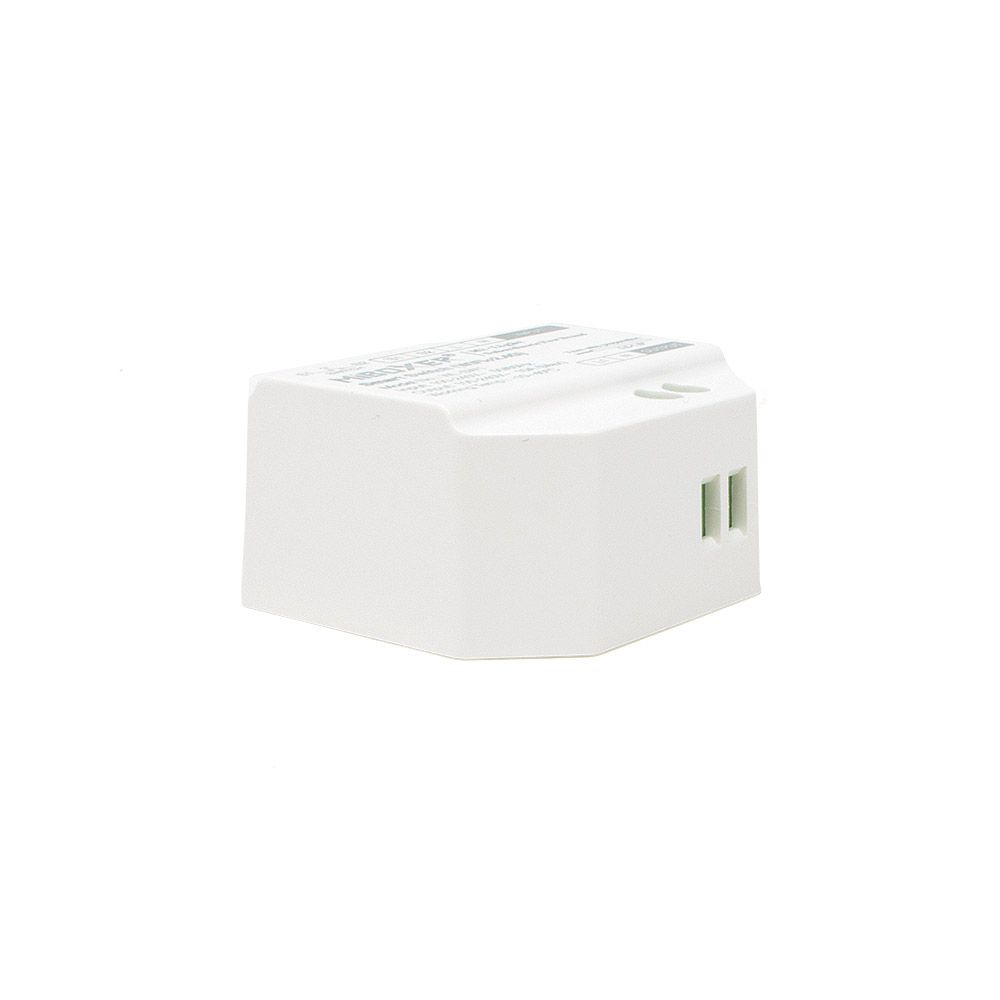

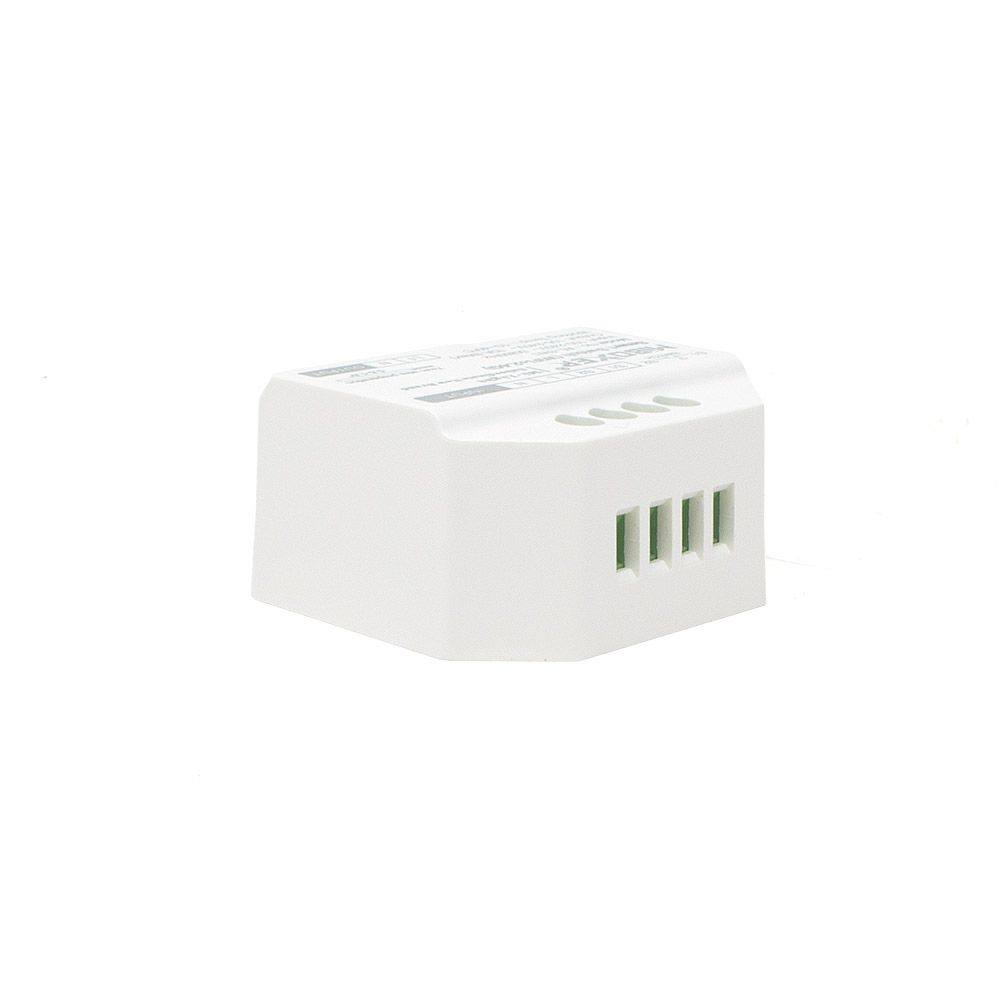

If you are looking to switch mains powered devices on and off by either a 2.4GHz remote-control handset, wall panel or even from your smartphone, the WLSW1 is an ideal product. This compact device is able to power on and off mains powered devices up to a maximum of 10A and it will work with any mains voltage from 100V up to 240V AC. The addition of a hard-wired connection for a "Push Switch" enabled you to also use a momentary switch to power your mains products on and off.

To control the unit from your smartphone, simply download the free TUYA application, search for the device and add it into the app for extra control, you will then also be able to set up routines and timers as required. The WLSW1 has signal synchronisation so when multiple units are being used, they will form a MESH network of devices that will pass on the signal from one unit to the next effectively extending the range of the controller indefinitely allowing multiple units to be linked together wirelessly.

For more information on this product and control options, please contact our technical sales team by phone, email or through our online live chat.

Download Datasheet -WLSW1 Specification Sheet

Technical Specification
Product Code:    WLSW1

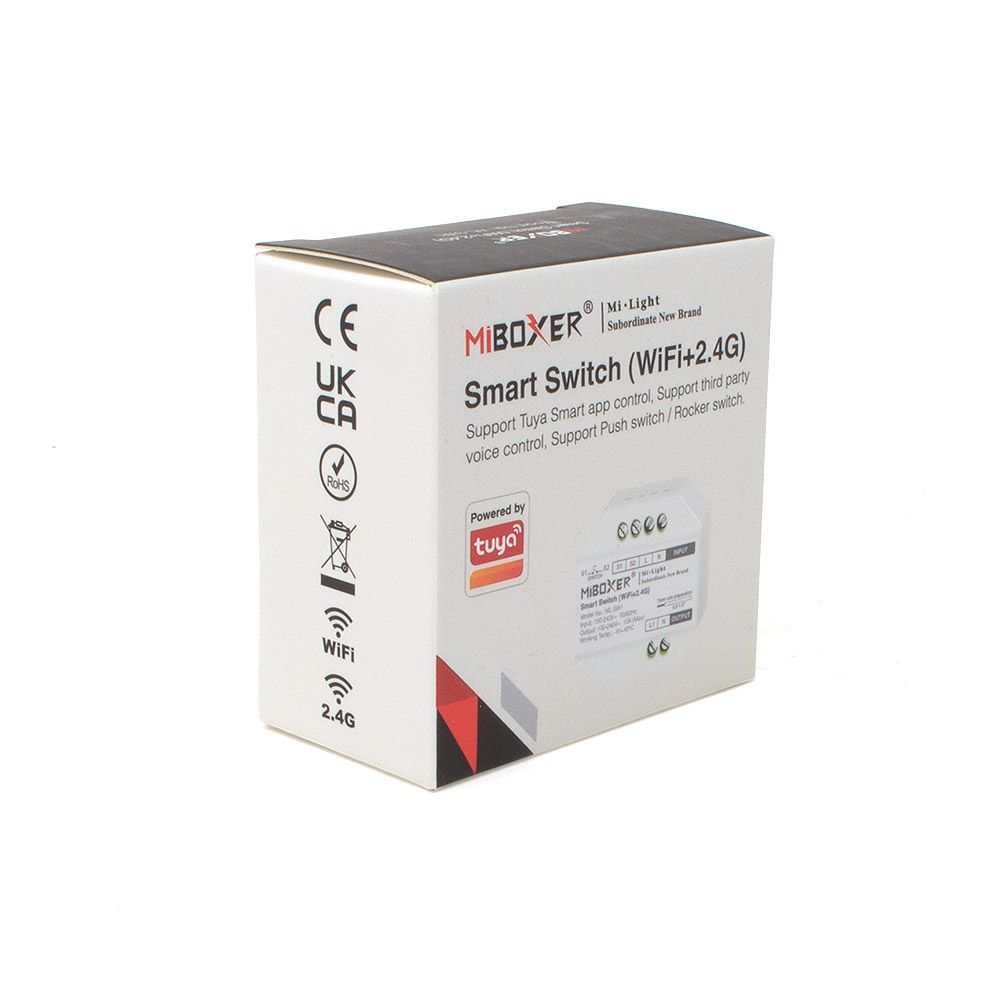

Product Packed：    Gift box
Manufacturer：    Mi-Light / MiBoxer
Product Type：    Controller / Receiver
IP Rating：    IP20 Non-Waterproof
Guarantee Period：    5 Years
Current：    10A Max
Input Voltage：    100V - 240V AC
Output Voltage：    100V - 240V AC
Connectivity：    WiFi
Size：    49mm x 49mm x 25mm
Dimmable:    No
Wireless Range：    Up to 30 metres
Transmitting Power：    6dBm
Operation Frequency：    WiFi
Operating Temp：    -20~60°C
Total Output：    Max15A
Output Max：    6A/Channel
