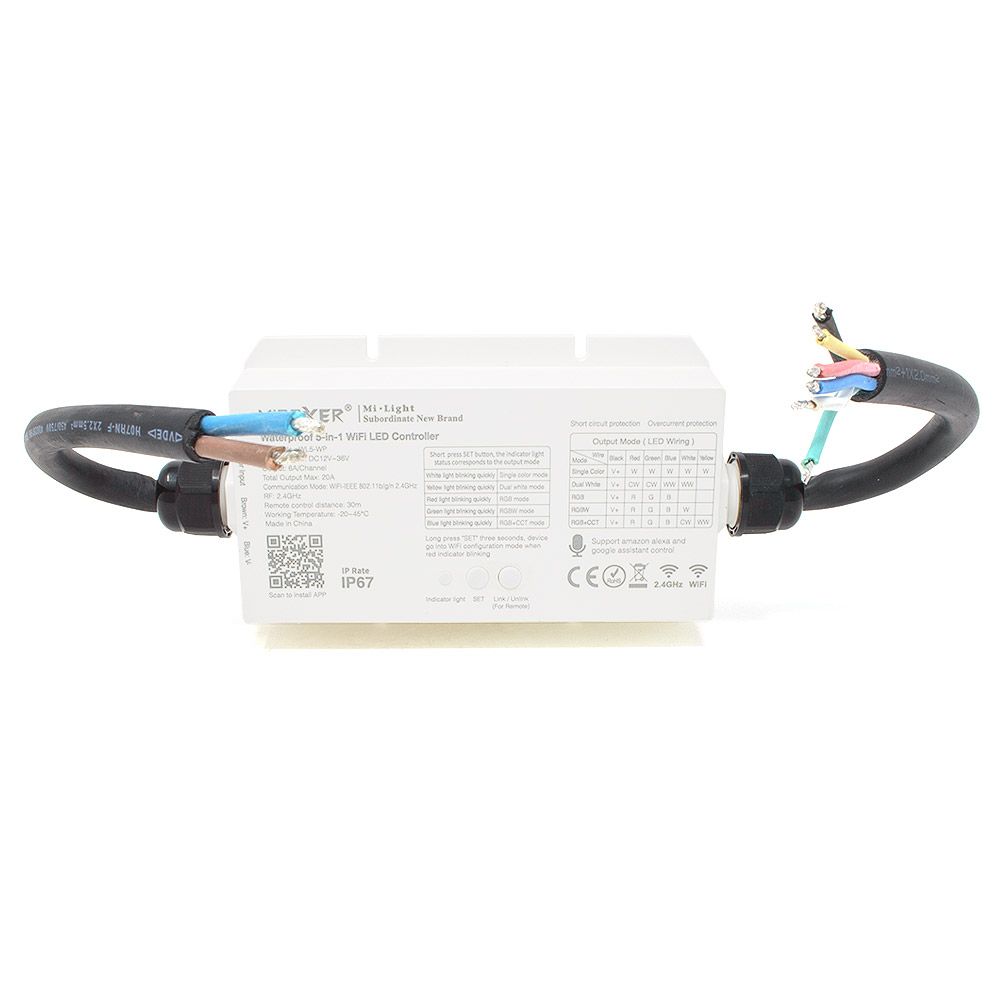

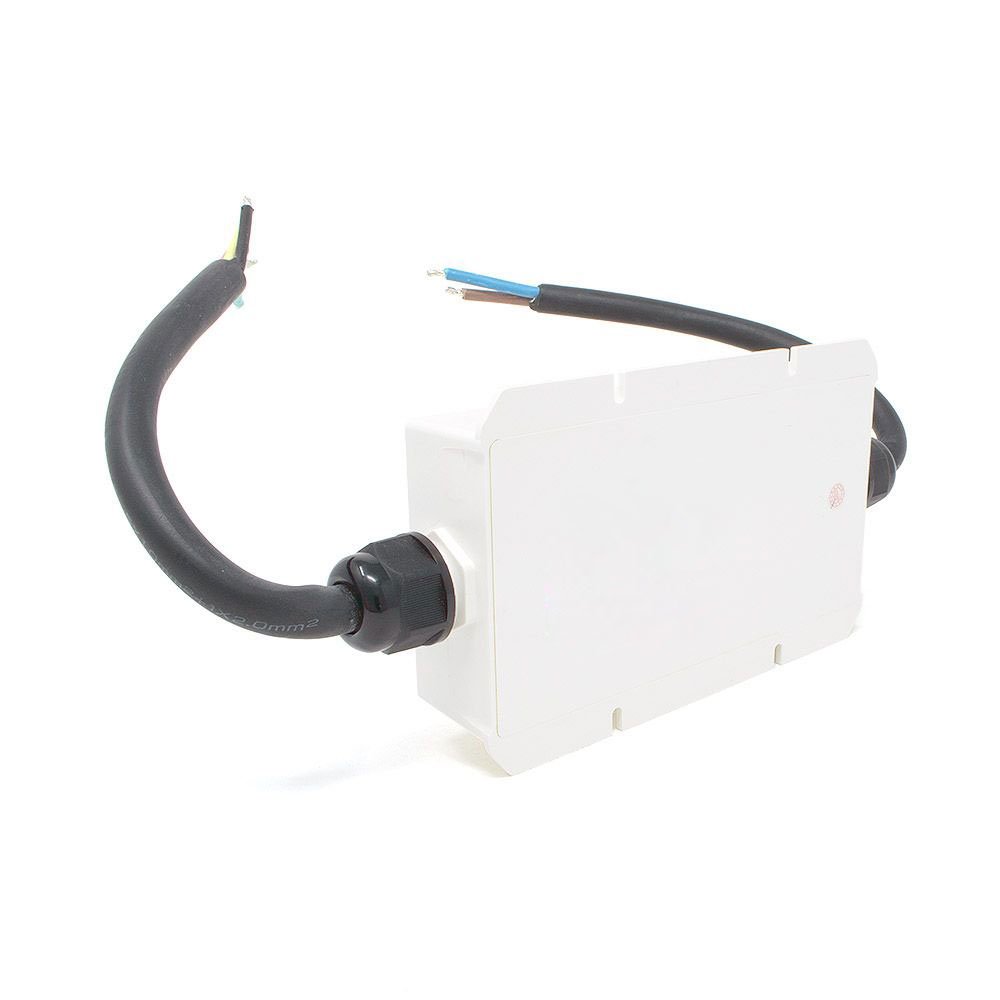

This high-quality "Five-in-One" Wi-Fi & 2.4GHz IP67 Waterproof LED strip controller is a stunning modern product from our Mi-Light range of LED Controllers.

Using the "Set" button, the LED multichannel receiver can be adjusted to control single-colour LEDs, dual white (Tunable Colour Temperature LEDs), tri-colour (RGB LEDs), quad-colour (RGBW LEDs) and RGBW+CCT 12V or 36V LED products.

It can be connected to a smartphone by downloading the free MiLight app or smart speaker via Wi-Fi. In addition, this multichannel receiver can be paired to a compatible Mi-Light RF remote control handset or wall panel on the 2.4GHz frequency. It is ideal for mounting outdoors to control your IP67 2.4GHz lighting products.

This multi channel receiver is waterproof and therefore is an ideal solution for enabling control over lighting in wet and damp environments such as pools, bathrooms, kitchens or outdoor areas.

To set the control mode simply toggle the set button on your lighting controller. This will change the colour of the adjacent indicator light to show:

White for Single colour mode
Yellow for Dual White mode
Red for Tri-Colour (RGB) mode
Green for Quad Colour (RGBW) mode
Blue for Five Channel (RGB+CCT) mode

Note: Each channel is rated at 6A, however, the total combined load over all five channels should not exceed 20A maximum load. A 12v - 36v DC (Direct Current) constant voltage input is required.

All our 2.4GHz radio frequency receivers feature an auto transmitting & synchronising function. As long as the controllers are all within 30m of each other, the multiple receivers in the group will sync together. No interconnecting control cables are needed.

This 5 channel receiver requires a 12v or 24v or 36v DC power supply to operate.

For more information on this product, don't hesitate to get in touch with our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Controls through our website or contact our technical sales team.

Download Datasheet -WL5WP Specification Sheet

Technical Specification
Product Code:    WL5WP
Product Packed:    Gift box
Manufacturer:    Mi-Light / MiBoxer
Product Type:    Controller / Receiver
IP Rating:    IP67 Waterproof
Guarantee Period:    5 Years
Input Voltage:    12V / 24V / 36V DC
Connectivity:    RF & WiFi
Size:    L185mm x W31mm x H87mm
Dimmable:    No
Wireless Range:    Up to 30 metres
Operation Frequency:    WiFi-IEEE 802.11b/g/n 2.4GHz
Operating Temp:    -20~45°C
Total Output:    Max 20A
Output Max:    6A/Channel
