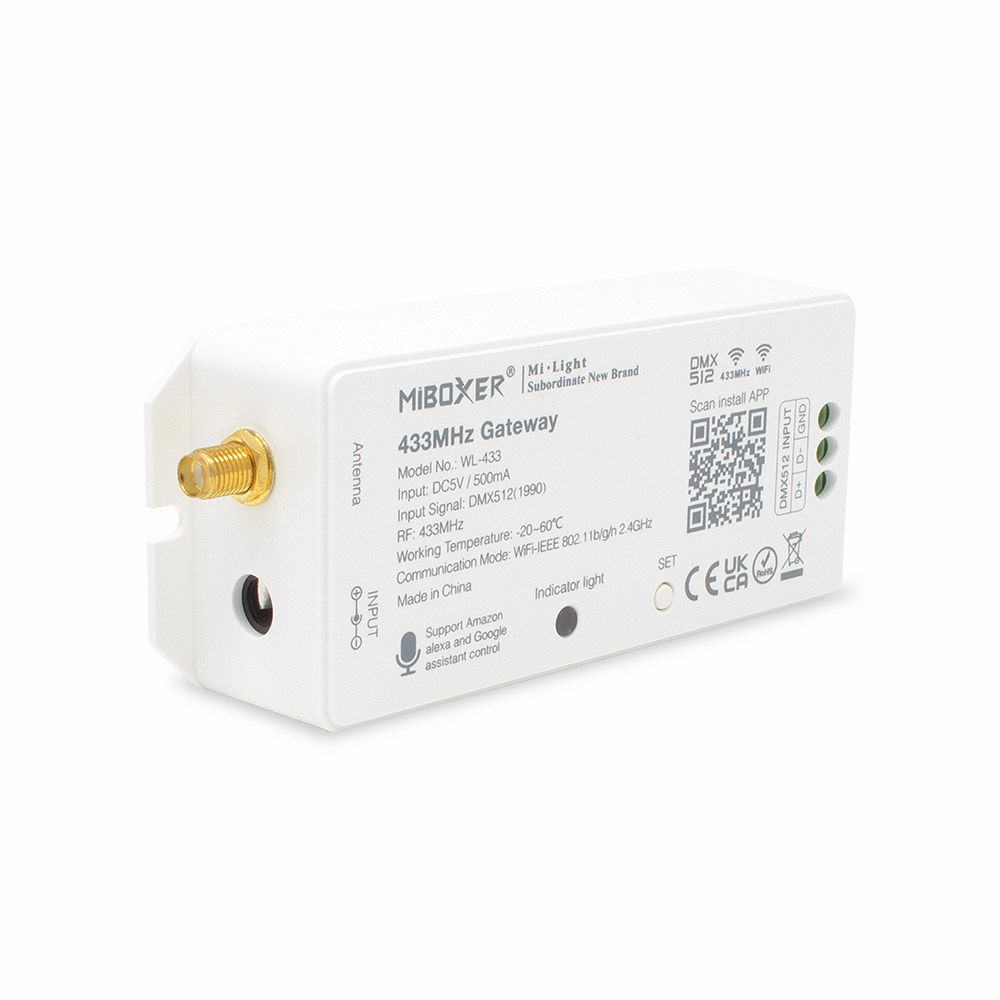

This compact LoRa WiFi home automation hub is available from our stunning range of MiLight products. It is designed to control 433MHz lighting products wirelessly, either by DMX or from your smartphone. It acts as a bridge, allowing control through the free app or voice control via smart speakers.

Note: A separate DMX controller using standard DMX512 protocols is required for this feature.

To set up the WiFi hub, place the hub within 50m of the lights and simply download the app from the app store.

Note: There is a QR code on the data sheet supplied with your gateway. This will take you to the app store to download the "Mi-Boxer Smart" application. There is also a QR code that will take you to a helpful installation video.

Simply create an account and log in through the app. Then add the lighting and control devices. Each device can be given names and put in virtual rooms for ease.

Note: This 433MHz gateway can only control single devices and cannot group control multiple devices.

This WiFi automation gateway allows full control over connected devices, both locally and from anywhere in the world. Setting up routines such as alarms and timers through the wireless network is effortless.

For voice control, follow the instructions on how to pair your Smart Speaker to your device. The Wi-Fi hub works with Amazon Alexa and Google Assistant home automation systems.

Read our blog on "Home automation" for more information.

Contact our sales team for more information on this product and control options. Simply Call, email or use our online live chat to talk to our technical sales team.

Shop our range of Home Automation Gateways through our website or contact our technical sales team.

Download Datasheet -WL433 Specification Sheet

Technical Specification
Product Code:    WL433
Product Packed:    Gift box
Manufacturer:    Mi-Light / MiBoxer
Product Type:    Home Automation
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Input Voltage:    5V DC
Connectivity:    RF
Size:    L118mm x W48mm x H27mm
Dimmable:    No
Wireless Range:    Up to 30 metres
Modulation Method:    LoRa Spread Spectrum
Transmitting Power:    15dBm
Operation Frequency:    2.4GHz
Operating Temp:    -20~60°C
Total Output:     Max500mA
