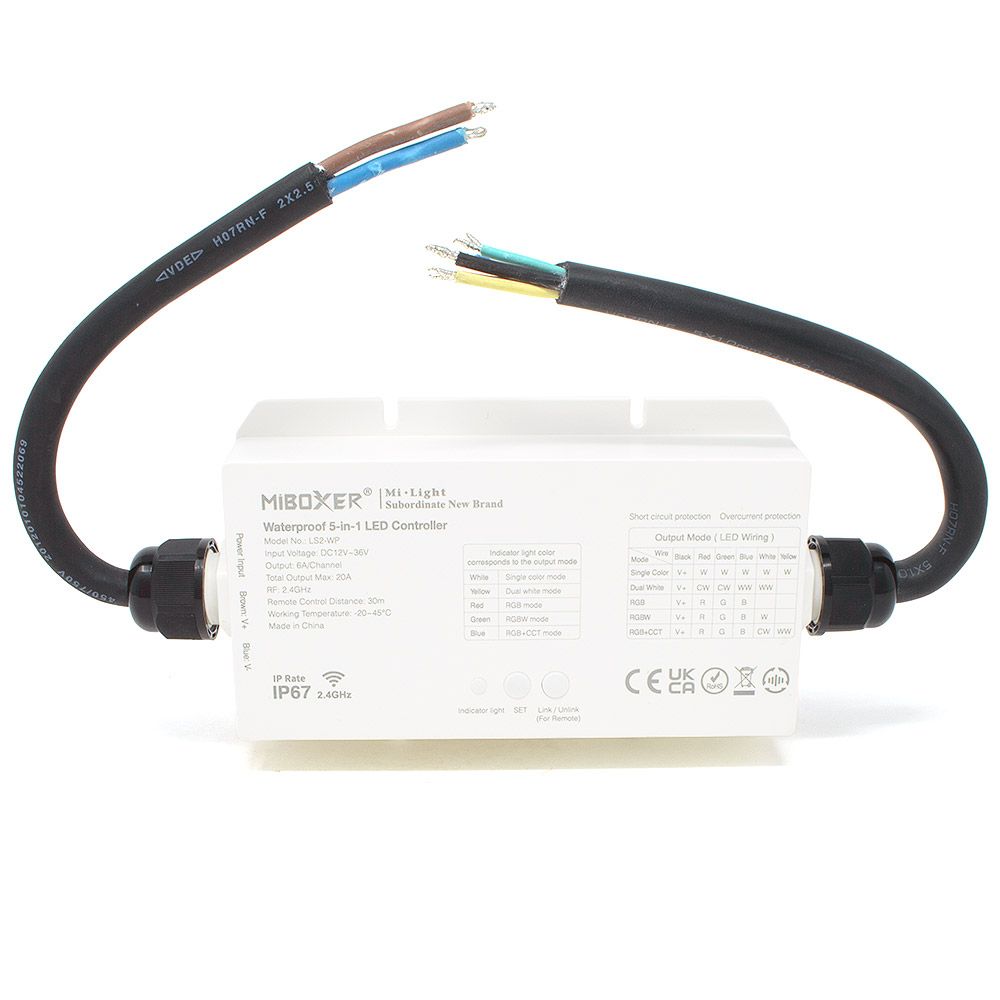

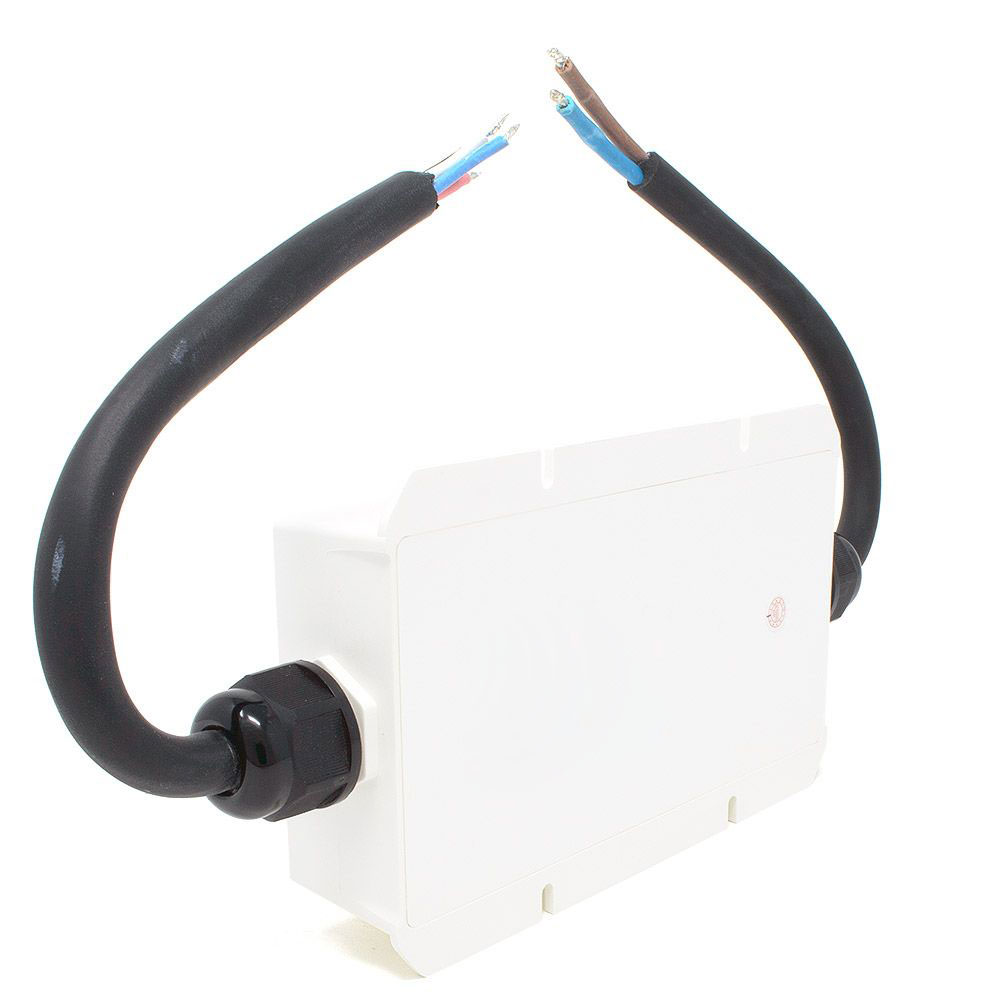

This high-quality waterproof (IP67 rated) "Five-in-One" smart LED driver is a stunning modern product from our Mi-Light range of LED Controllers. The Mi-Light 5-in-1 RF LED Receiver can be paired to a compatible Mi-Light RF Remote control handset or wall panel remote controller on the 2.4GHz frequency.

In addition, when paired to the FUTD01 DMX LED Controller / 2.4GHz transmitter you can control the multichannel receiver with wireless DMX controls from a DMX512 controller. It can even be integrated into your smart home automation system for control from your smartphone or third-party speaker.

This LED multichannel receiver is waterproof. It is therefore an ideal solution for enabling control over lighting in wet and damp environments. This can include areas such as pools, bathrooms, kitchens or outdoor areas

Using the "Set" button, the unit can be adjusted to control single-colour LEDs, dual white (Tunable Colour Temperature LEDs), tri-colour (RGB LEDs), quad-colour (RGBW LEDs) and RGBW+CCT LED products. A LED indicator will show which mode the multi-channel receiver is set to.

White for Single colour mode
Yellow for Dual White mode
Red for Tri-Colour (RGB) mode
Green for Quad Colour (RGBW) mode
Blue for Five Channel (RGB+CCT) mode

Note: Each channel is rated at 6A, however, the total combined load over all five channels should not exceed 20A maximum load. A 12v or 24v DC (Direct Current) constant voltage input is required.

All our 2.4GHz radio frequency receivers feature an auto transmitting & synchronising function. As long as the multiple controllers are all within 30m of each other, the multiple receivers in the group will sync together. No interconnecting control cables are needed.

This 5 channel receiver requires a 12v or 24v or 36v DC power supply to operate.

For more information on this product, don't hesitate to get in touch with our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Controls through our website or contact our technical sales team.

Download Datasheet -LS2WP Specification Sheet

Technical Specification
Product Code:    LS2WP
Product Packed:    Gift box
Manufacturer:    Mi-Light / MiBoxer
Product Type:    Controller / Receiver
IP Rating:    IP67 Waterproof
Guarantee Period:    5 Years
Input Voltage:    12V / 24V / 36V DC
Connectivity:    RF
Size:    L185mm x W31mm x H87mm
Dimmable:    No
Wireless Range:    Up to 30 metres
Operation Frequency:    2.4GHz
Operating Temp:    -20~45°C
Total Output:    Max 20A
Output Max:    6A/Channel
