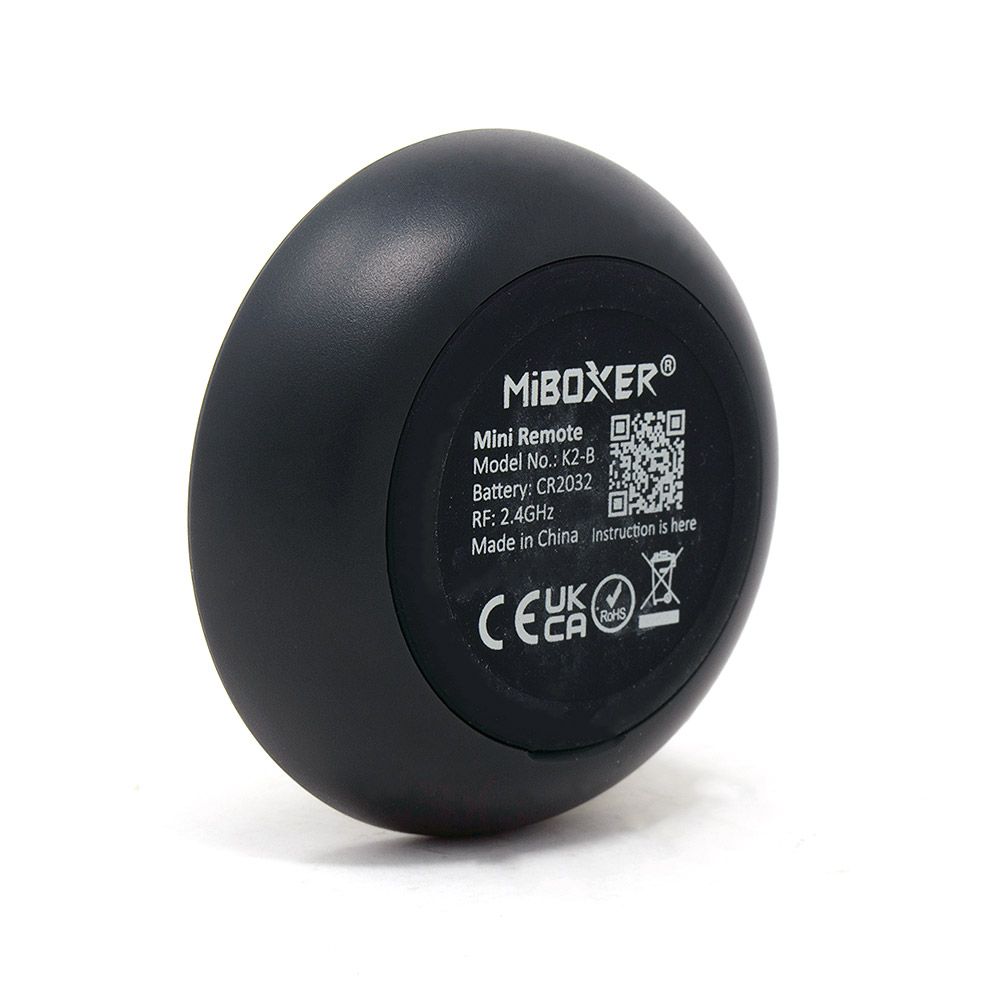

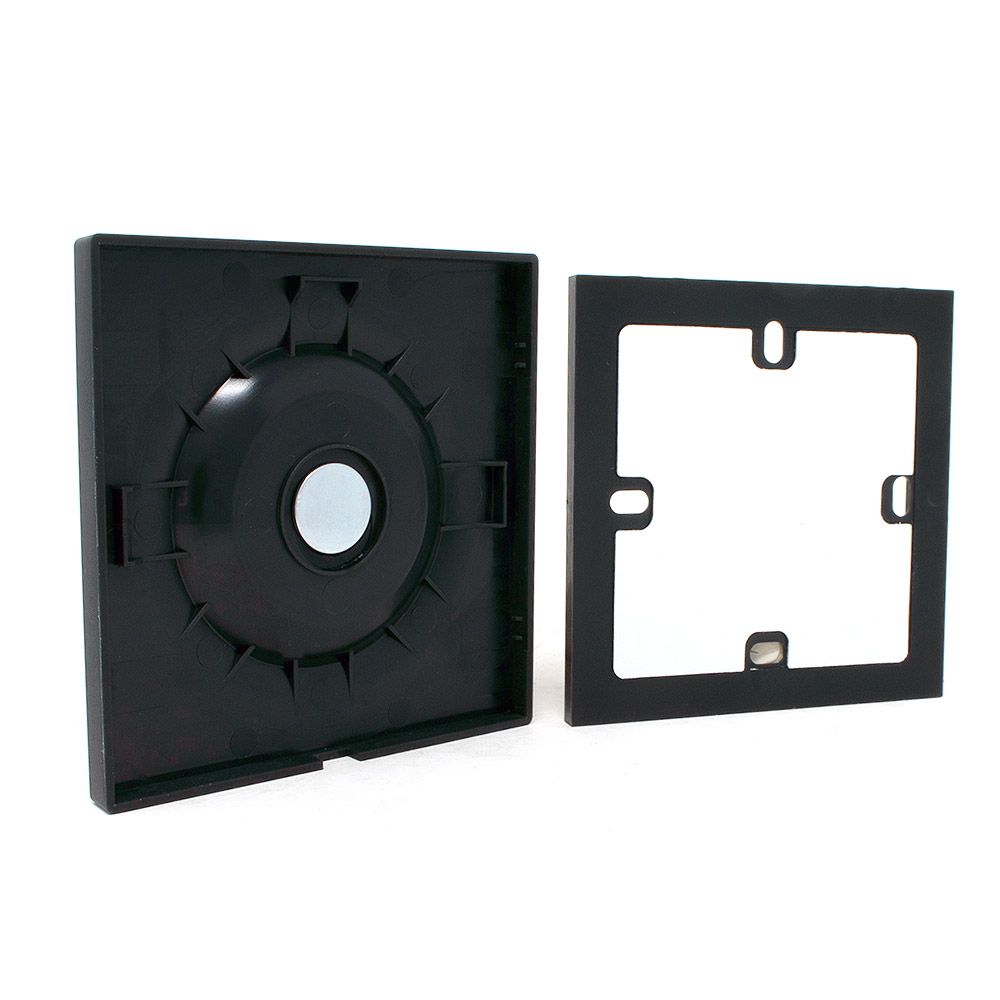

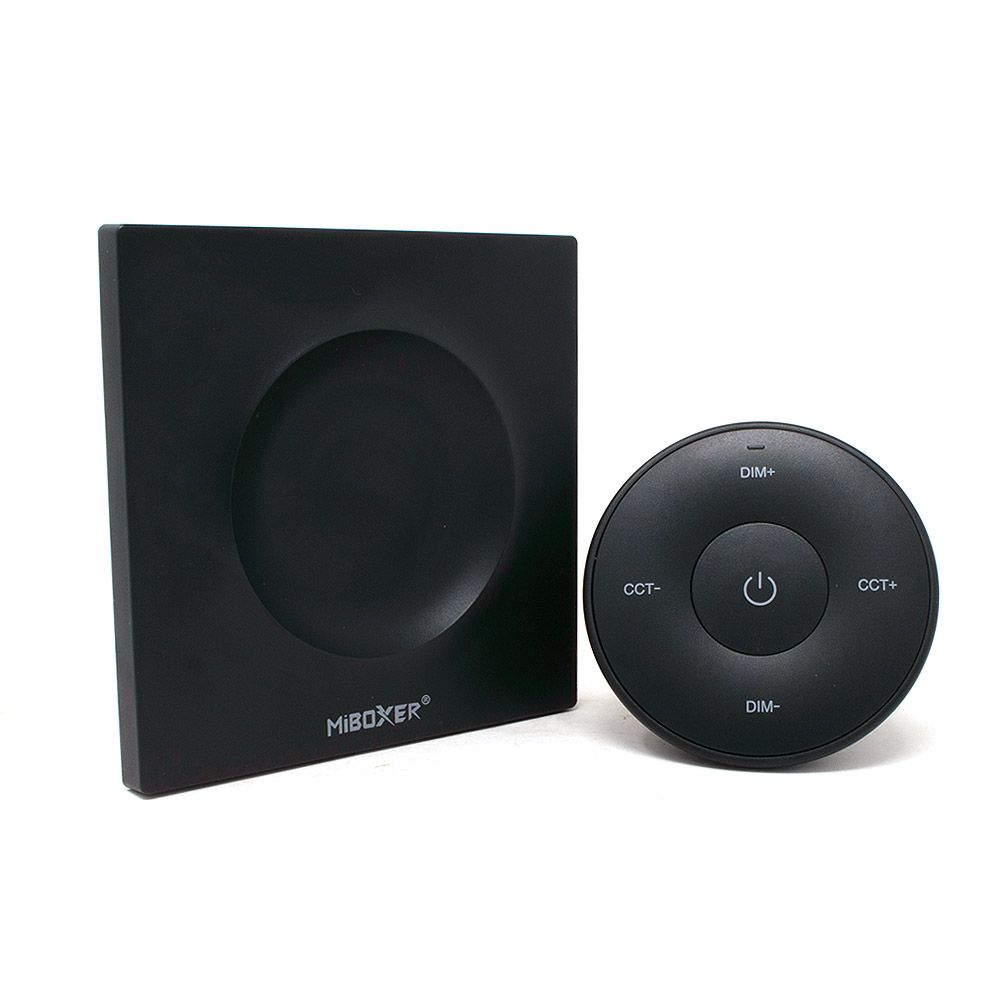

This brilliantly designed 2.4GHz RF controller is a versatile unit that can be used as a wireless wall panel or handset. The controller is finished in a smart matt black colour and is powered by a 3V CR2032 button battery and it can be attached to the magnetic wall bracket supplied and used as a wall panel, as it is battery powered, it doesn't require any wiring or power supply. To use the controller as a wireless handset, simply lift it off the magnetic wall panel base and it can then be carried round and operated as a remote-control handset.

The controllers are designed to work with colour temperature adjustable products (CCT) that will offer control over the colour temperature of your lighting from cool white to warm white. There is an on and off button and full dimming from 100% down to 0%.

For information on this and our other professional control products, please contact our technical sales team by phone, email, or our live chat on our website.

Download Datasheet -K2B Specification Sheet

Technical Specification
Product Code:    K2B

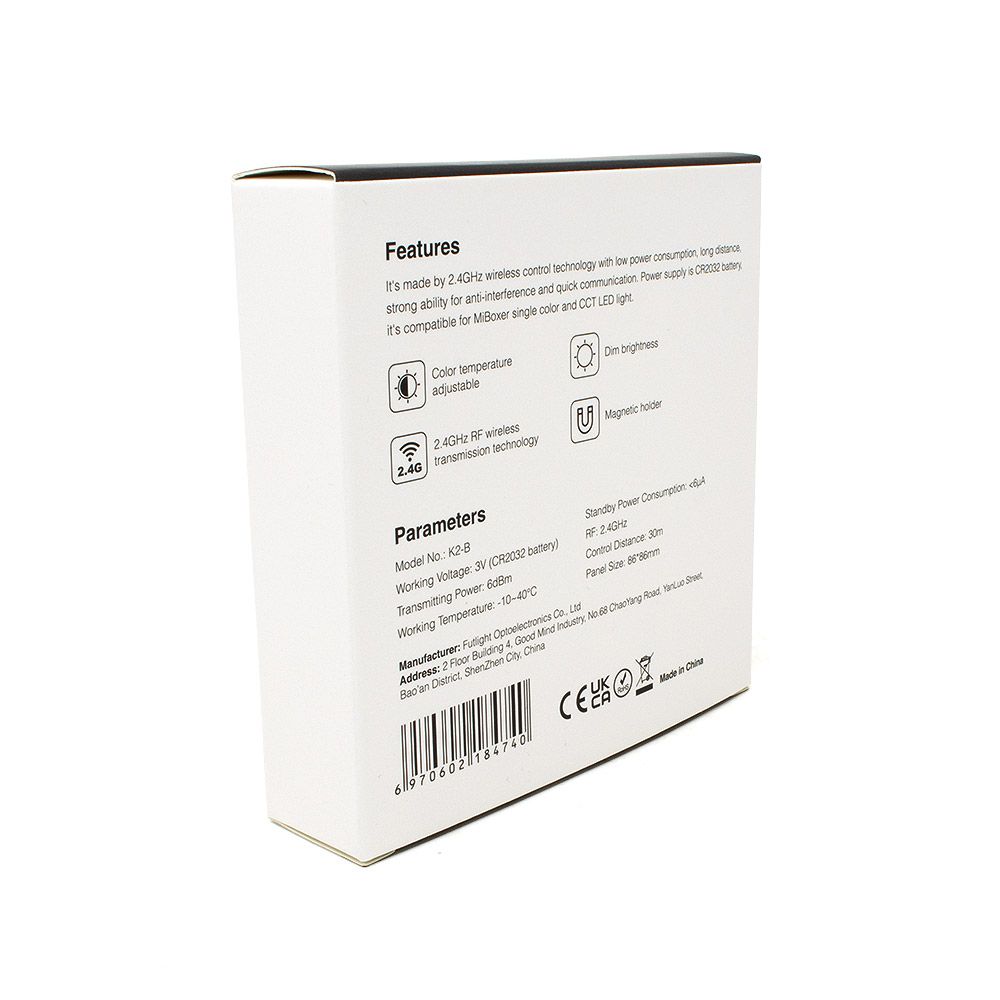

Product Packed:    Gift box
Manufacturer:    Mi-Light / MiBoxer
Product Type:    Controller
Colour:    Black
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Input Voltage:    Battery Powered
Connectivity:    RF
Size    Wall panel: 86mm x 86mm x 9mm, detachable remote: 60mm Dia x 15mm
Dimmable:    No
Wireless Range:    Up to 30 metres
Modulation Method:    GFSK
Transmitting Power:    6dBm
Standby Power Consumption:    20uA
Operation Frequency:    2.4GHz
Battery Type:    2 x AAA Batteries
Operating Temp:    -10 to 40ºC
