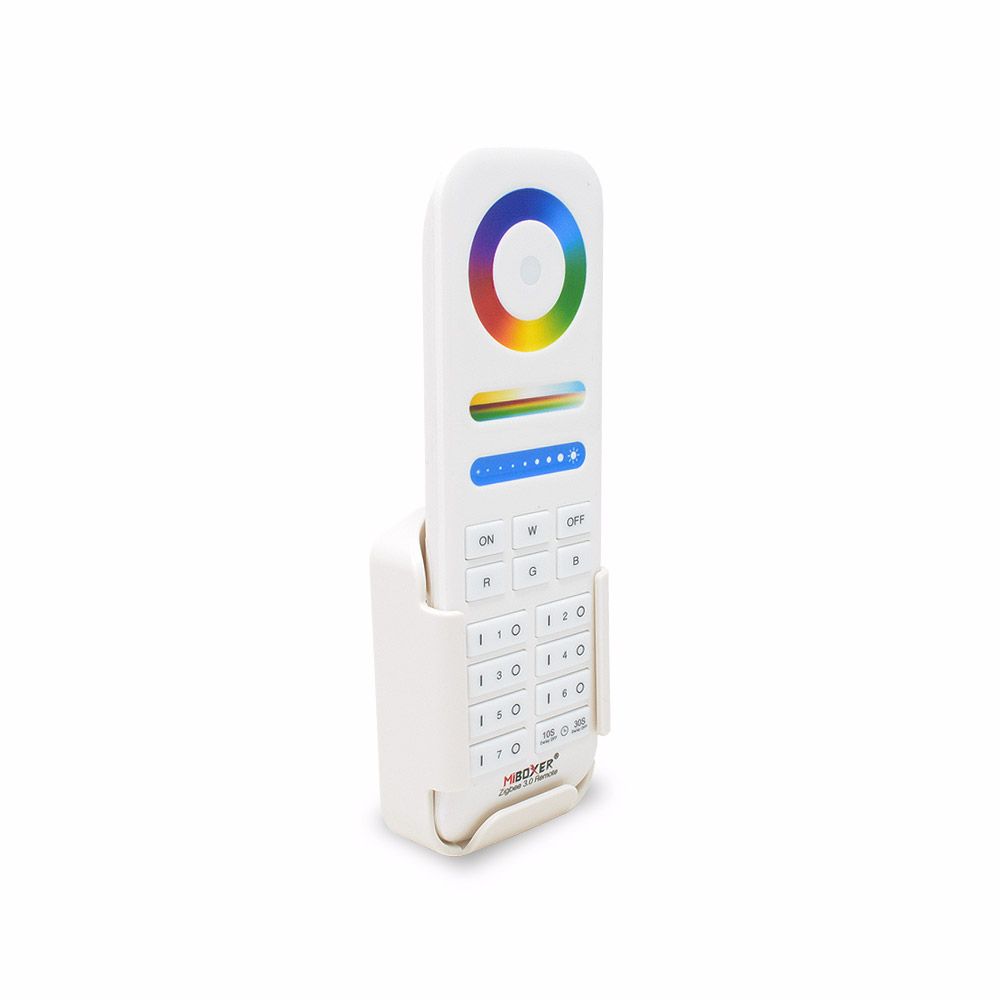

Featuring touch-sensitive controls, this 8-zone ZigBee RGB+CCT controller is available from our brilliant range of MiLight products. Offering a sleek white finish, this is an effortless solution to control LED lighting from up to 30m away.

ZigBee is a wireless control protocol that forms a MESH network. This is a group of products that all communicate with each so that the wireless signal can find the most efficient route around the network. This is ideal for controlling multiple LED lights such as LED strip lights.

Using its high-quality touch-sensitive discs, sliders and buttons, this RGB+CCT LED controller features the following:

8 zone control
Instant colour selection
Colour temperature control
Intensity control
10-30s turn off delay

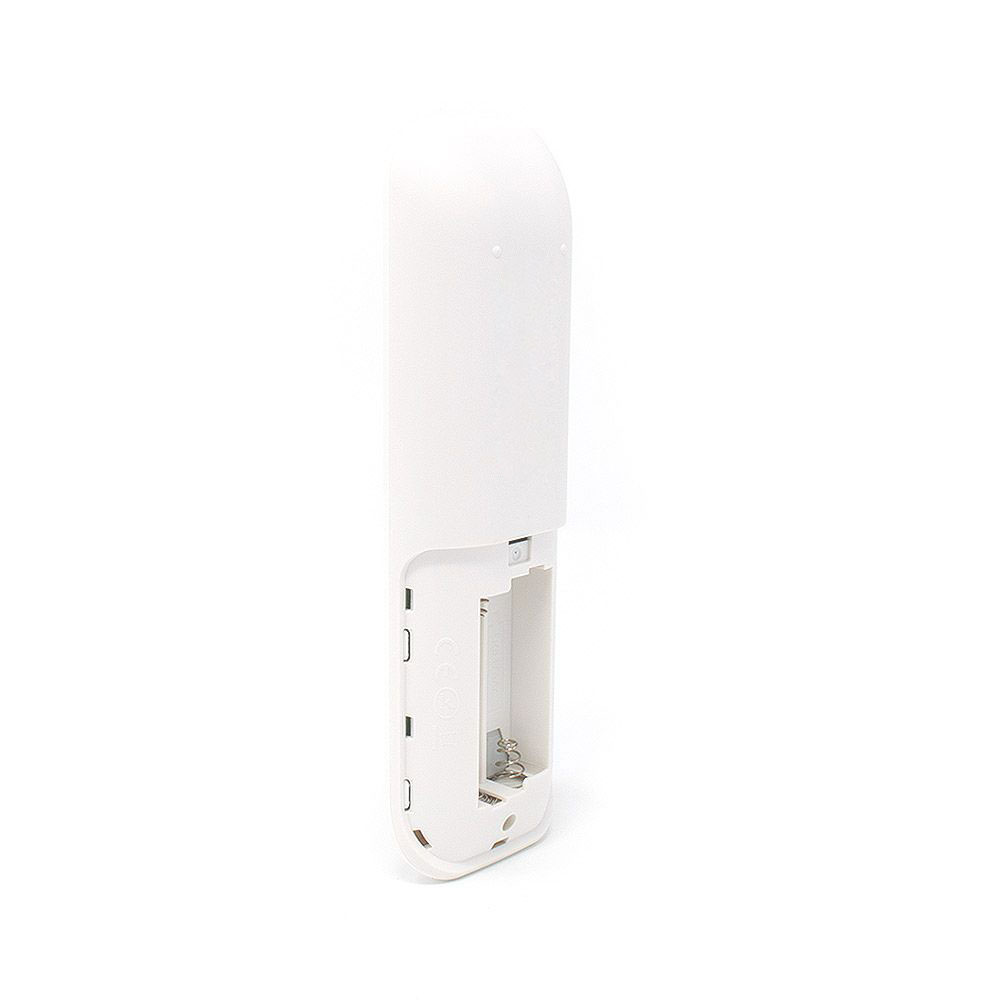

Insert two AAA-type batteries into the handset to power the controller and pair it to an appropriate receiver. This ZigBee handset is designed to be integrated into an existing ZigBee network. It is perfect for controlling your smart home. It can be connected to home automation gateways.

Please Note: A line of sight is not needed between the handset and the LED light. Although, walls or obstructions may weaken the signal.

For more information on this product and control options, please contact our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Controls through our website or contact our technical sales team

Download Datasheet - FUT089Z Specification Sheet

Technical Specification
Product Code:    FUT089Z
Product Packed:    Gift box
Manufacturer:    Mi-Light / MiBoxer
Product Type:    Controller
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Input Voltage:    Battery Powered
Connectivity:    ZIGBEE protocols
Size:    47 X 19 X 153mm
Dimmable:    No
Wireless Range:    Up to 100 metres
Continuous Operation:    Not suitable for 24/7 continuous use
Transmitting Power:    10dBm
Standby Power Consumption:    20uA
Operation Frequency:    ZIGBEE 3.0
Battery Type:    2 x AAA Batteries
Operating Temp:    -10 to 40ºC
