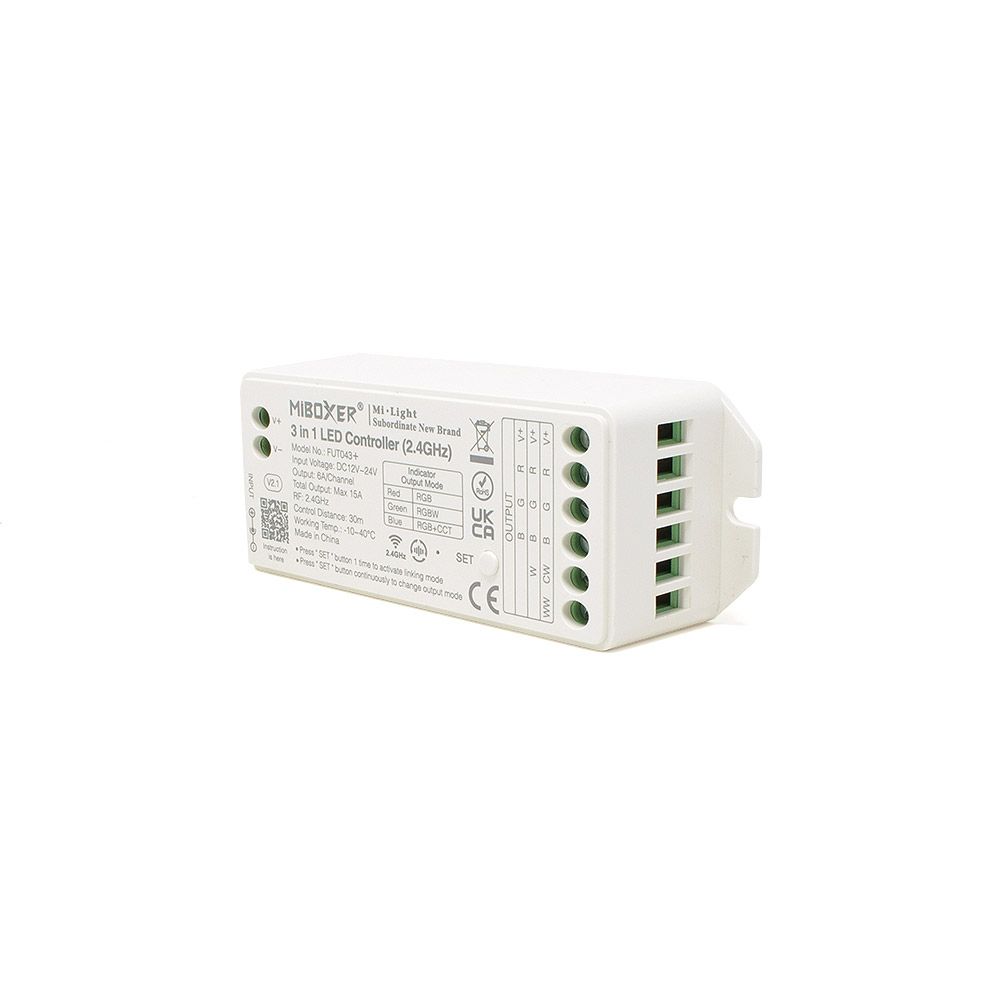

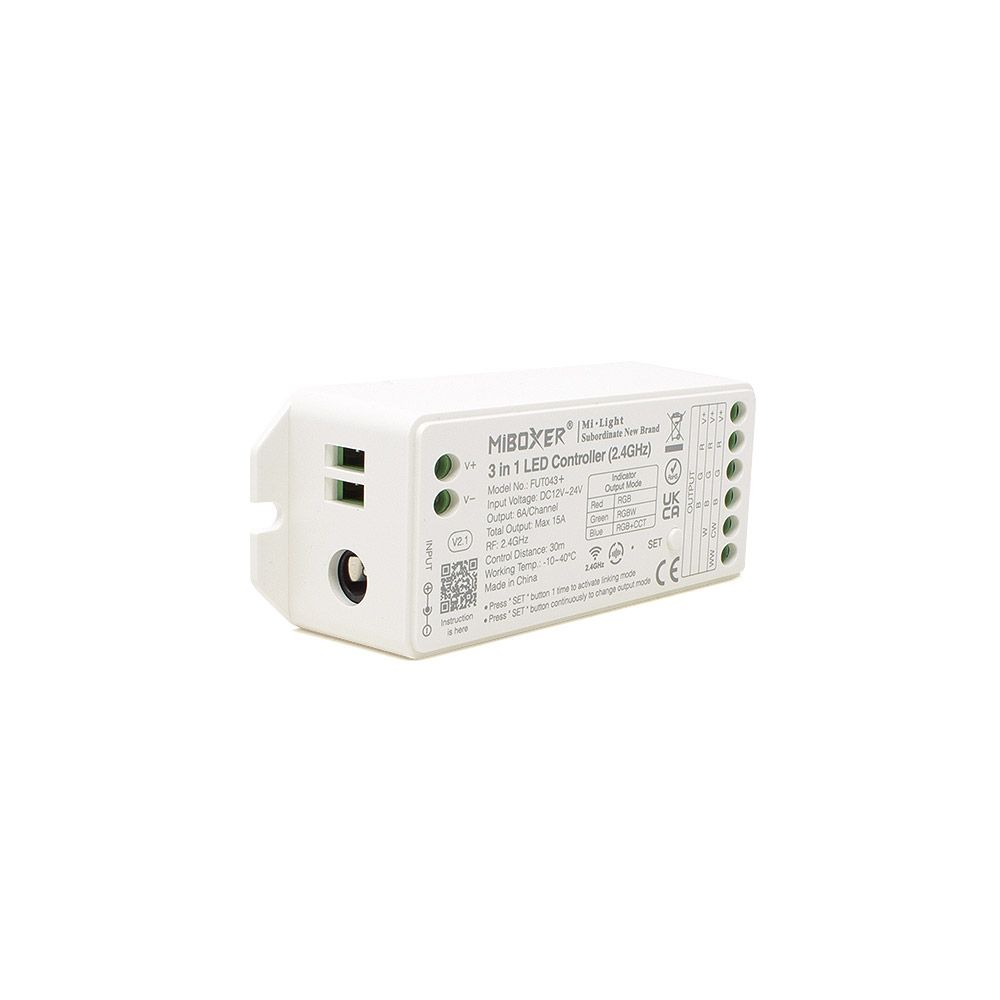

This LED remote transmitter and receiver kit is available from our range of Mi-Light products. This set offers a pre-paired 2.4GHz three-in-one receiver and transmitter, which is an ideal solution for controlling RGB, RGBW and RGB+CCT LED lighting such as LED strip lights. as the receiver can be set to three channel, four channel and five channel modes. This enables the set to be used for multiple applications rather than just RGB.

The 2.4GHz RF signal will also synchronise wirelessly between receivers allowing all the lighting connected to multiple receivers to synchronise colours and programs together wirelessly.

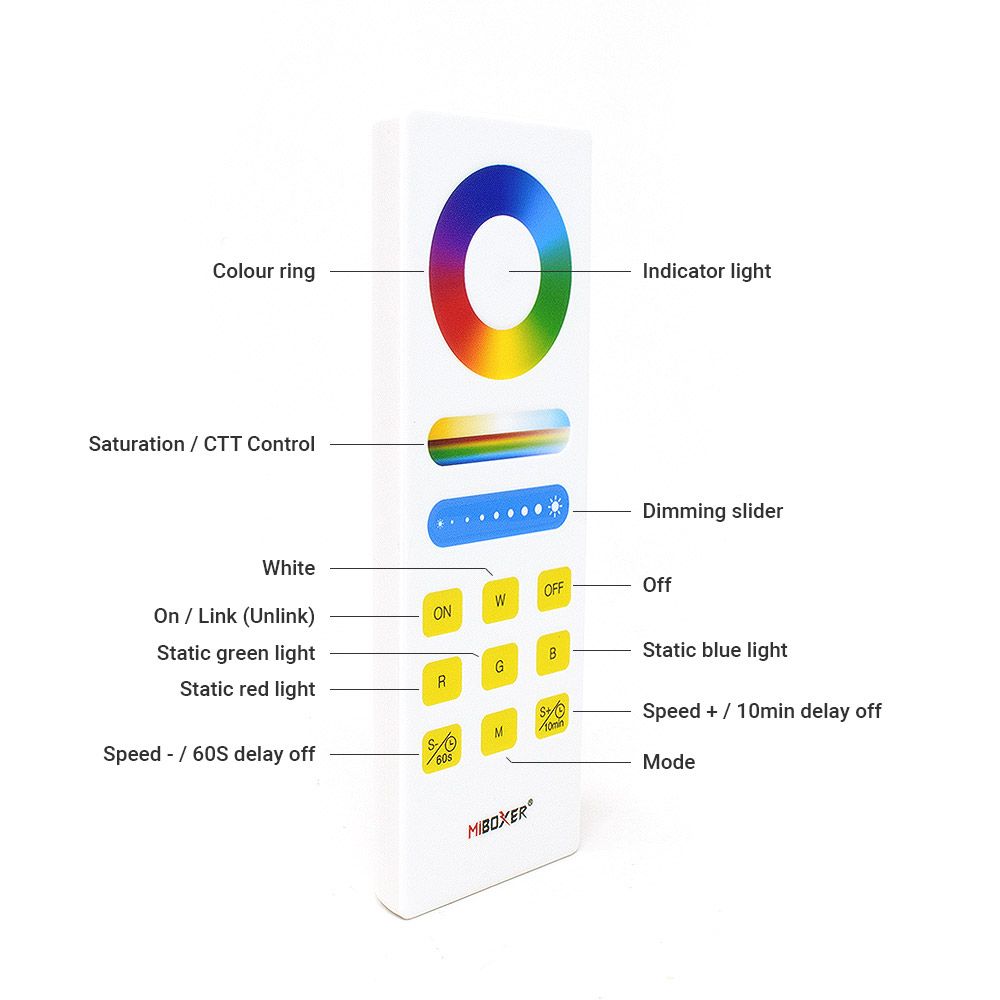

Using the high-quality touch discs, slider controls and buttons on the handset, it can provide the following:

Instant colour selection
Brightness control
Colour Saturation control
Delay-off
9 program modes
Individual buttons to adjust the red, green, blue and white selection
The Mi-Light receiver system has a memory feature. If powered off from the handset, when it is next powered on it will revert to the last colour, program or dimming level selected.

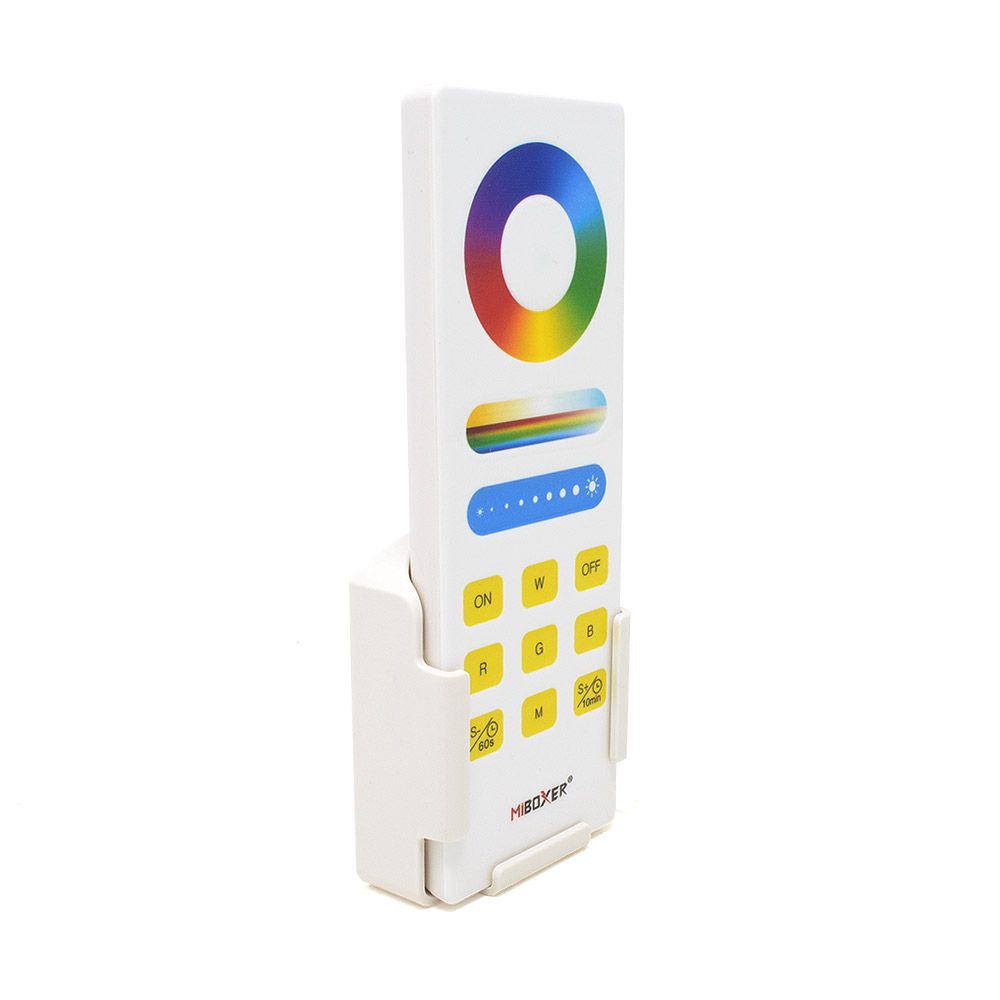

Insert two AAA-type batteries into the wireless LED lights remote control to power the controller. The handset will work up to 30m away from the paired lighting devices. This Mi-Boxer handset is supplied with its own holder, allowing you to wall-mount it.

Note: A line of sight is not needed between the handset and the receiver although, walls or obstructions may reduce this distance.

For more information on this product and control options, please get in touch with our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Controls through our website or contact our technical sales team.

Download Datasheet -FUT043A-PLUS Specification Sheet

Technical Specification
Product Code:    FUT043A-PLUS
Product Packed:    Gift box
Manufacturer:    Mi-Light / MiBoxer
Product Type:    Controller / Receiver
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Input Voltage:    Handset - Battery / Receiver - DC 12 - 24V
Connectivity:    RF
Size    Handset: L134 x W47 x H16.5mm Receiver: L97 x W37 x H28mm
Dimmable:    No
Wireless Range:    Up to 30 metres
Modulation Method:    GFSK
Transmitting Power:    6dBm
Standby Power Consumption:    20uA
Operation Frequency:    2.4GHz
Battery Type:    2 x AAA Batteries
Operating Temp:    NA
Smart Synchronisation:    Version 1.0
