This DALI Bus Power Supply is an excellent product from our new range of Mi-Light / MiBoxer LED products.

DALI (which stands for Digital Addressable Lighting Interface) is a DALI lighting control management system. Incorporating DALI power supplies, control devices, DALI LED drivers and lighting systems. A forefront brand within the LED lighting industry.

When setting up a DALI control system you will need to run a two-core cable around all the DALI devices in the system, this is called the DALI BUS. This requires a power supply of 16v DC (Direct Current) to operate and the DLPOW1 is the perfect product to use for this purpose.

The DALI BUS power supply is the power and the communication line which enables all the components on the DALI system to communicate to and from the DALI Master or main controller and it also facilitates signals from any DALI wall panels or other controllers in the system to control the various lighting products.

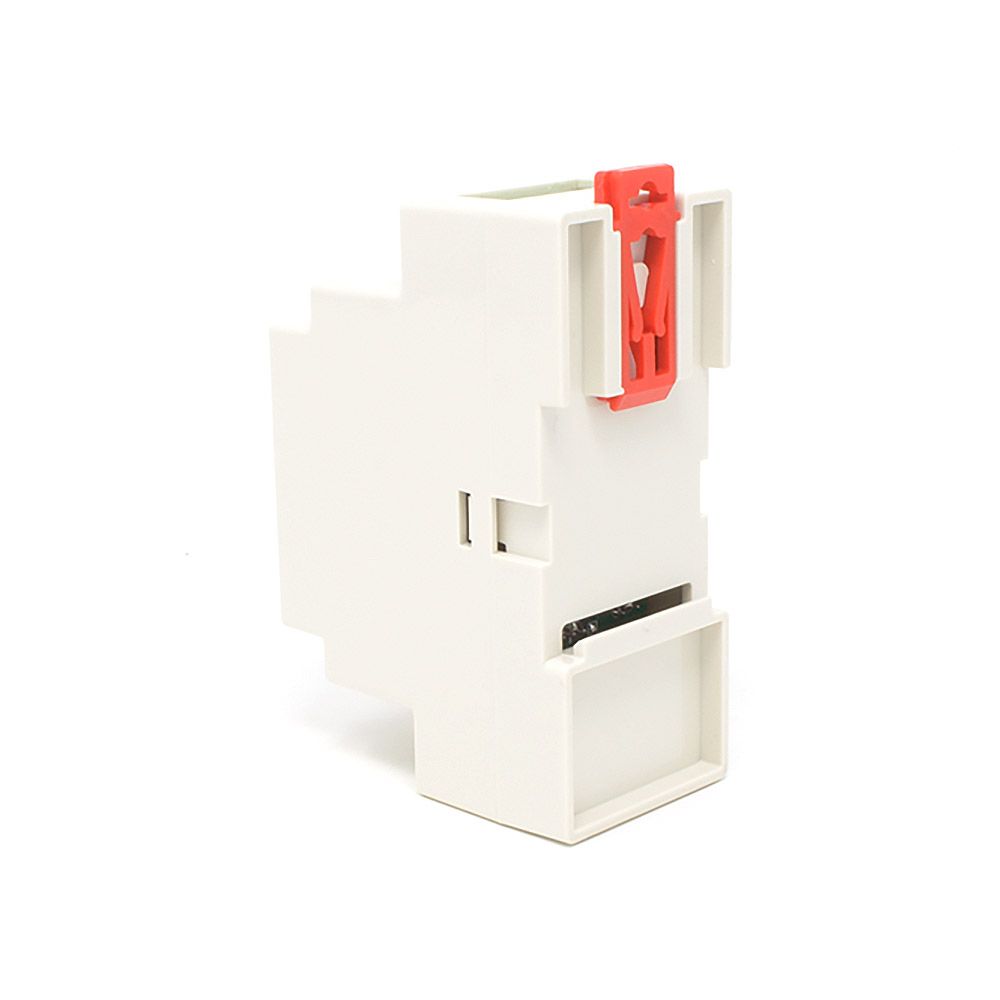

This compact unit, measuring just 92.5mm x 36mm x 59mm can be mounted onto a standard 35mm DIN Rail.

The DALI DIN rail power supply requires an input voltage of between 100v - 240v AC (50/60Hz). The maximum output current of the power supply is 250mA with a maximum rated power of 4W.

Once mounted onto the DIN rail simply connect the DALI BUS cable to the output side and you are ready to go.

For more information on this product, don't hesitate to get in touch with our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of DALI control through our website or contact our technical sales team.

Download Datasheet -DLPOW1 Specification Sheet

Technical Specification
Product Code:    DLPOW1

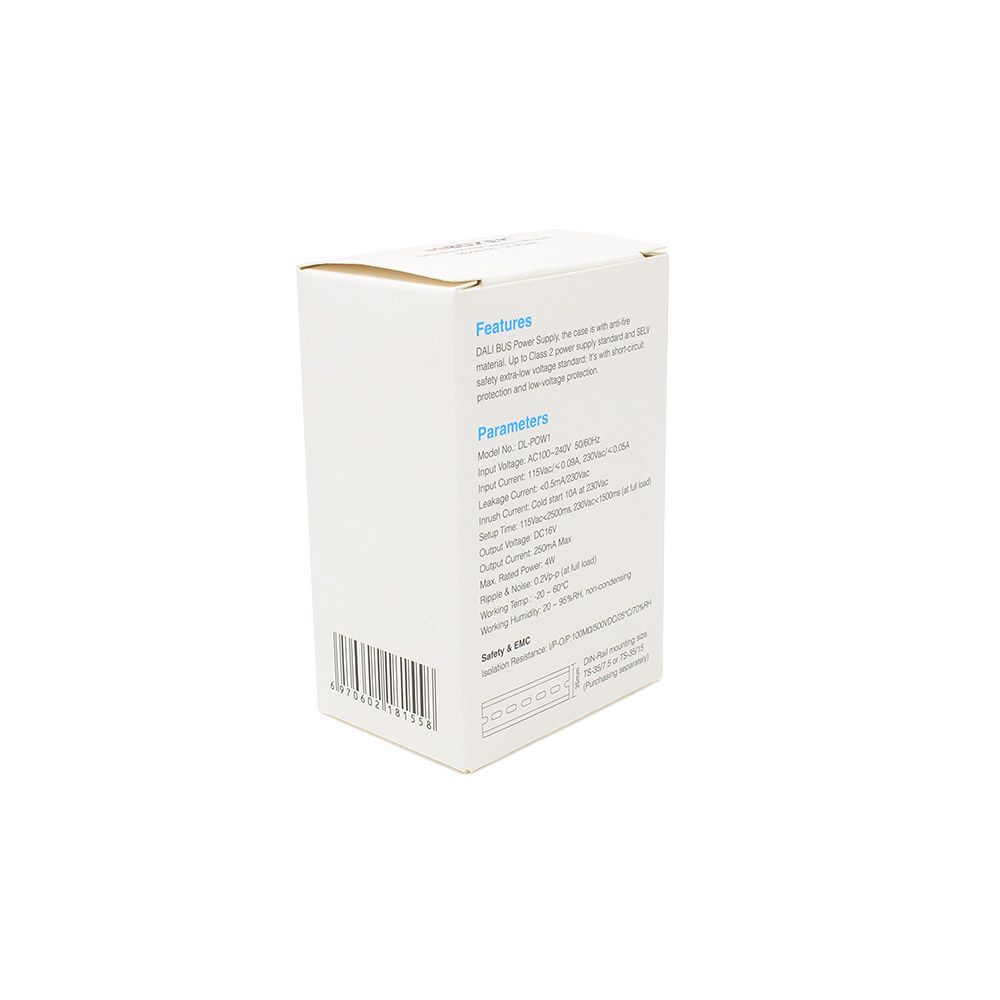

Product Packed:    Gift box
Manufacturer:    Mi-Light / MiBoxer
Product Type:    Power Supplies
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Current:    115Vac/≤0.09A, 230Vac/≤0.05A
Input Voltage:    100V - 240V AC
Output Voltage:    16V DC
Connectivity:    DALI protocols
Size:    L92.5mm x W36mm x H59mm
Power Consumption:    4w
Dimmable:    No
Modulation Method:    DALI
Operating Temp:    -20~60°C
Total Output:    250mA Max
