    AMPDMXXL MiBoxer IP66 DMX Signal Amplifier

    $46.99
      (2 Reviews) | Write a review

    Part Number:AMPDMXXL
    Choose options above to see availability
    checkmark

    Free Shipping

    No minimum purchase required.
    checkmark

    Worry-free Returns

    - 30 day return policy

    This AMPDMXXL DMX Data Amplifier is designed to work with the following products from MI-Light / Mi-Boxer:

    UW409AXL
    UG409AXL
    UG405AXL
    SP403AXL
    When connecting long lengths of DMX (Digital Multiplex) cable between devices, or for projects where there are a lot of units to link together you will need to boost the DMX signal.

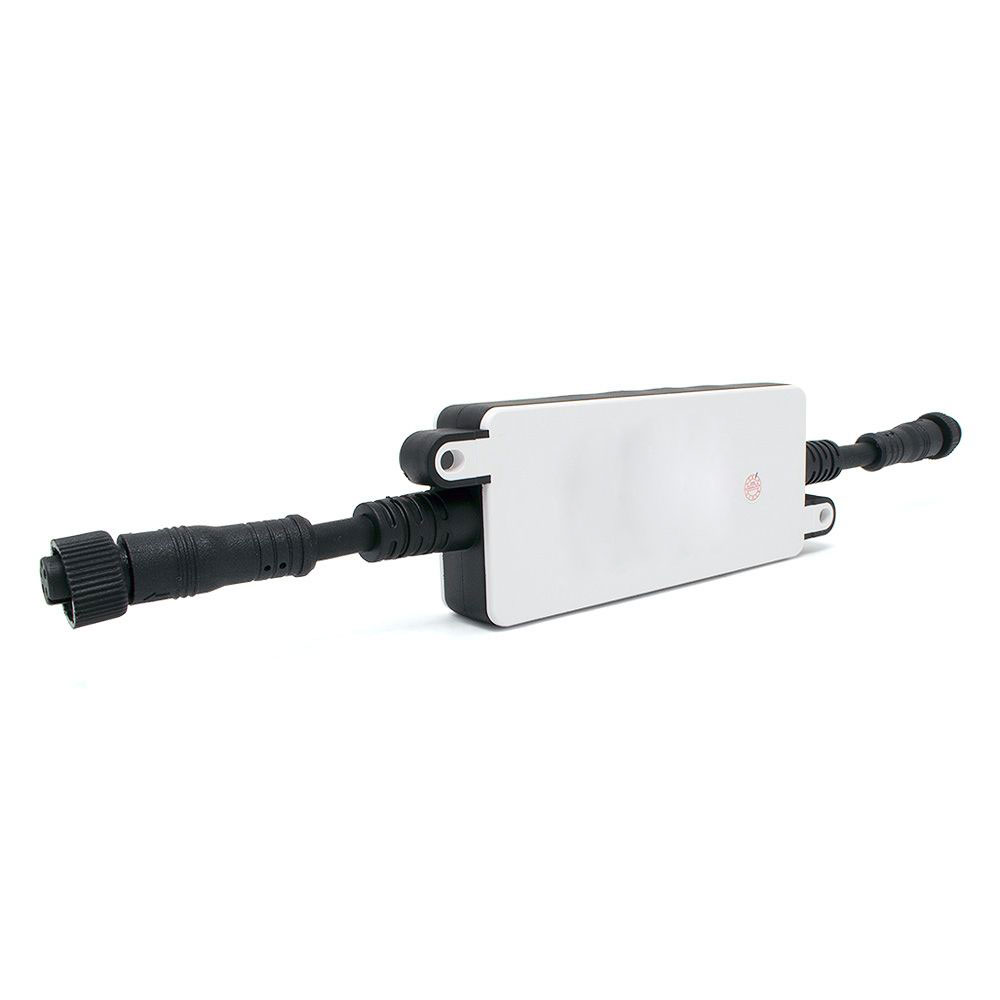

    This compact DMX amplifier from our Mi-Boxer range of products can be inserted into the DMX line. This will effectively boost the DMX signal so that it will carry over a longer distance. This will also enable more products that work off the DMX protocol to be controlled.

    The unit is rated IP66, allowing it to be used for projects with both indoor and outdoor light fixtures.

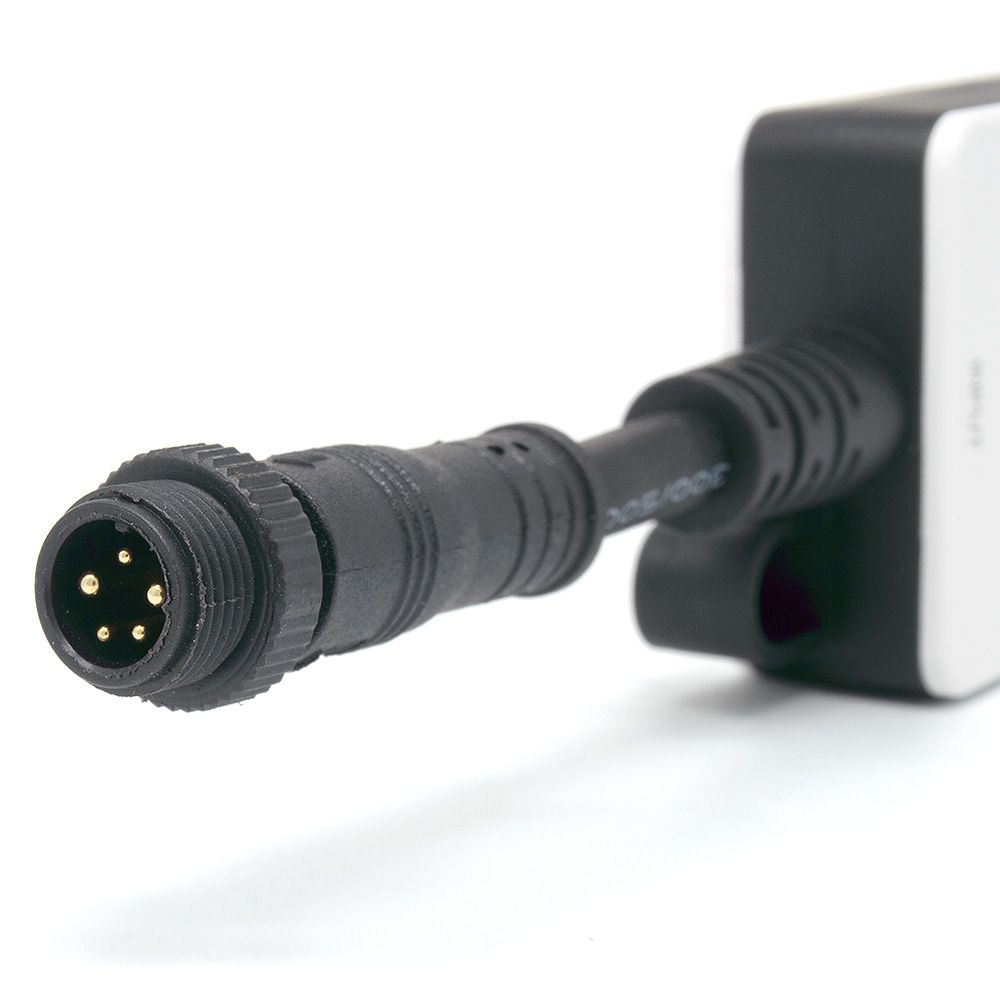

    The unit is supplied with integrated special 5-pin connectors that match the connectors supplied on the products it is connected to.

    Note: When long runs of DMX cable are required over a larger installation, it is advisable to attach a DMX terminator plug on the DMX output side of the last unit in the chain. Doing this will help to stop bounce back and other spurious flickering on the lighting products.

    If a DMX terminator plug is unavailable, then a 120 Ohm, 0.5W resistor can be connected between the + & - terminals on the last unit.

    For more information on this and any of our professional lighting and control products please contact our technical sales team by phone, email, or live chat via our website.


    Download Datasheet -AMPDMXXL Specification Sheet


    Technical Specification
    Product Code:    AMPDMXXL
    Product Packed:    Gift box
    Manufacturer:    Mi-Light / MiBoxer
    Product Type:    Data Amplifier
    IP Rating:    IP66 Splashproof
    Guarantee Period:    5 Years
    Connectivity:    DMX 512 protocols
    Size:    L131mm x W46mm x H20.4mm Overall length with input / output cables: 280mm
    Dimmable:    No
    Operation Frequency:    DMX512
    Operating Temp:    -20~60°C
    Total Output:    Max 20A
    Output Max:    20A/Channel
