Featuring high-quality RGB + CCT LEDs, this low-voltage LED batten from M-Light has many professional features including colour synchronisation, which forms a MESH network with other battens in the chain, ensuring the colours all stay synchronised together wirelessly. Each batten passes the control signal to the next batten so as long as each product is within 30m of the previous batten, there is no limit to the number of units you can synchronise.

The battens are designed to be controlled wirelessly with the Mi-Light 2.4GHz RF Handsets or Wall panels and they can also be controlled using DMX when paired to the FUTD01 DMX to RF wireless transmitter. They can also be controlled from a smartphone application or with voice control when connected to a Mi-Light Gateway. With over 16 million colour combinations available plus colour temperature adjustment of white from Cool white (6500K) to Warm White (2700K), you can select any colour or colour combination you require and by mixing white, with RGB you can also adjust the colour saturation.

Download Datasheet - RL524 Specification Sheet

Technical Specification
Product Code:    RL524
Product Packed:    Gift box
Manufacturer:    Mi-Light / MiBoxer
Product Type:    Wall Washer
Colour:    RGB / CW & WW
IP Rating:    IP66 Splashproof
Metres:    1 MTR
Colour Temperature:    2700 - 6500K
Guarantee Period:    5 Years
Wattage:    24W
Input Voltage:    24V DC
Connectivity:    RF
Illumination Distance:    >15m

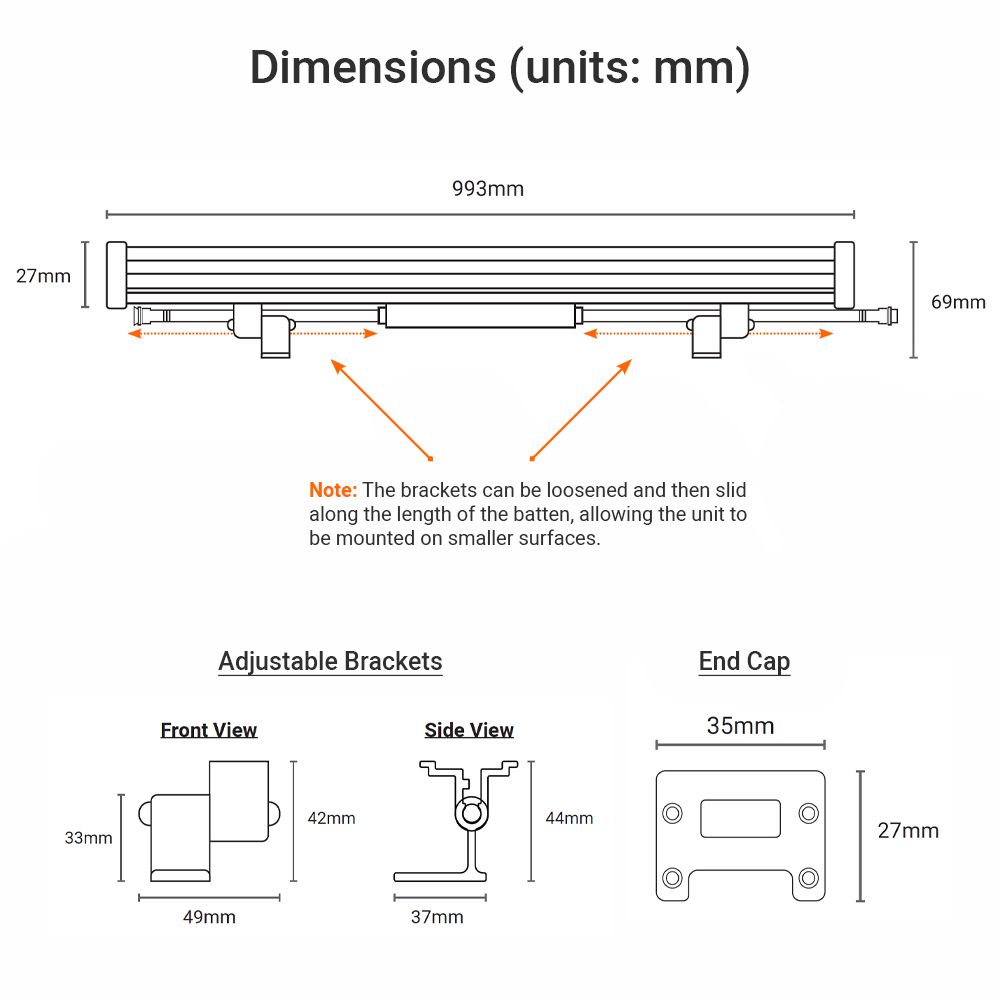

Size:    993mm X 35mm X 69mm
Beam Angle:    24 degree
CRI Rating (greater than):    CRI >80
Dimmable:    Yes
LED Quantity:    54 LEDs
Average LED life Hrs:    50,000
Wireless Range:    Up to 30 metres
Unit Weight:    1.21KG appx
Transmitting Power:    6dBm
Operation Frequency:    2.4GHz
Operating Temp:    -20~45°C
Luminous Flux:    1600LM
Light Efficiency:    70LM/W
Smart Synchronisation:    Version 2.0
