This popular 1m DMX wall washer is available from our incredible range of MiLight MiBoxer products. This DMX RGB LED wall washer provides a maximum lumen rating of 1800LM. Read the specifications for lumen ratings for each channel.

This LED wall washer can create over 16 million colours, featuring a dedicated warm white channel that offers a gorgeous colour temperature of 2700 - 3000K. It is also fully dimmable, allowing various lighting effects to be achieved for a specific atmosphere.

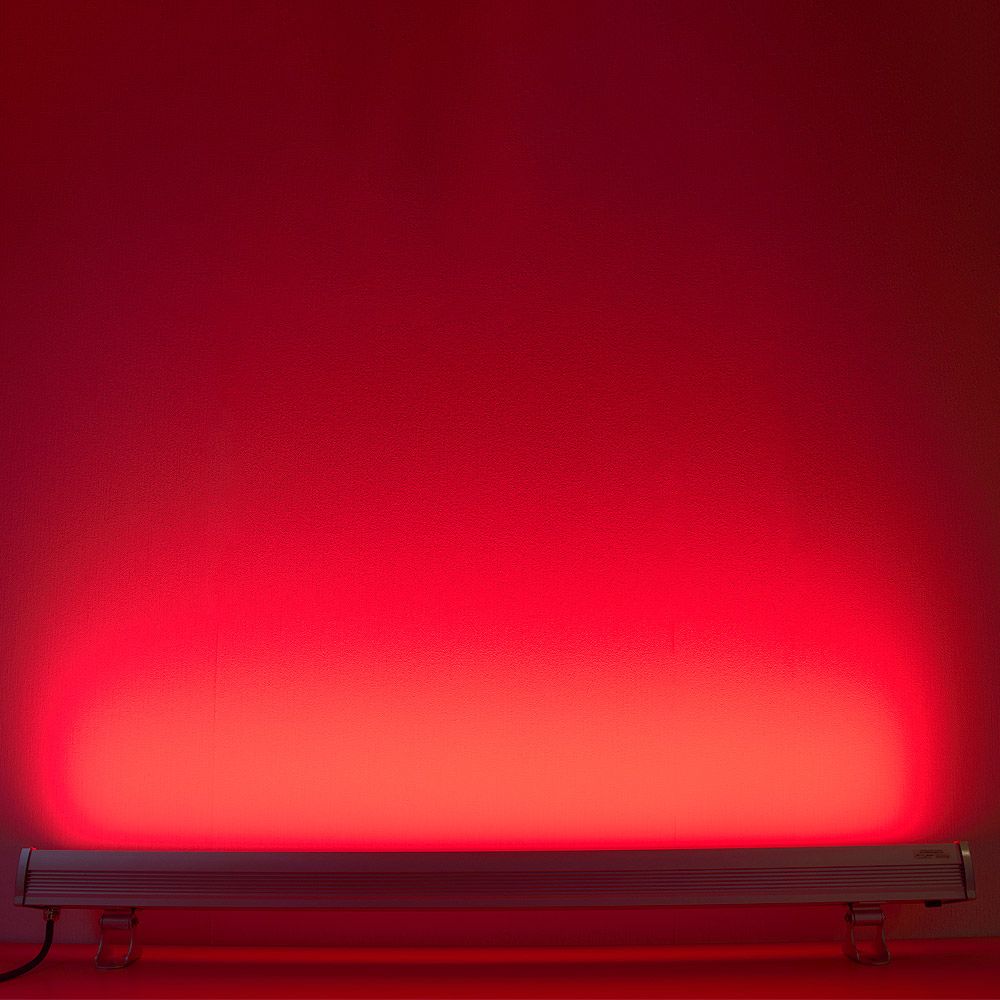

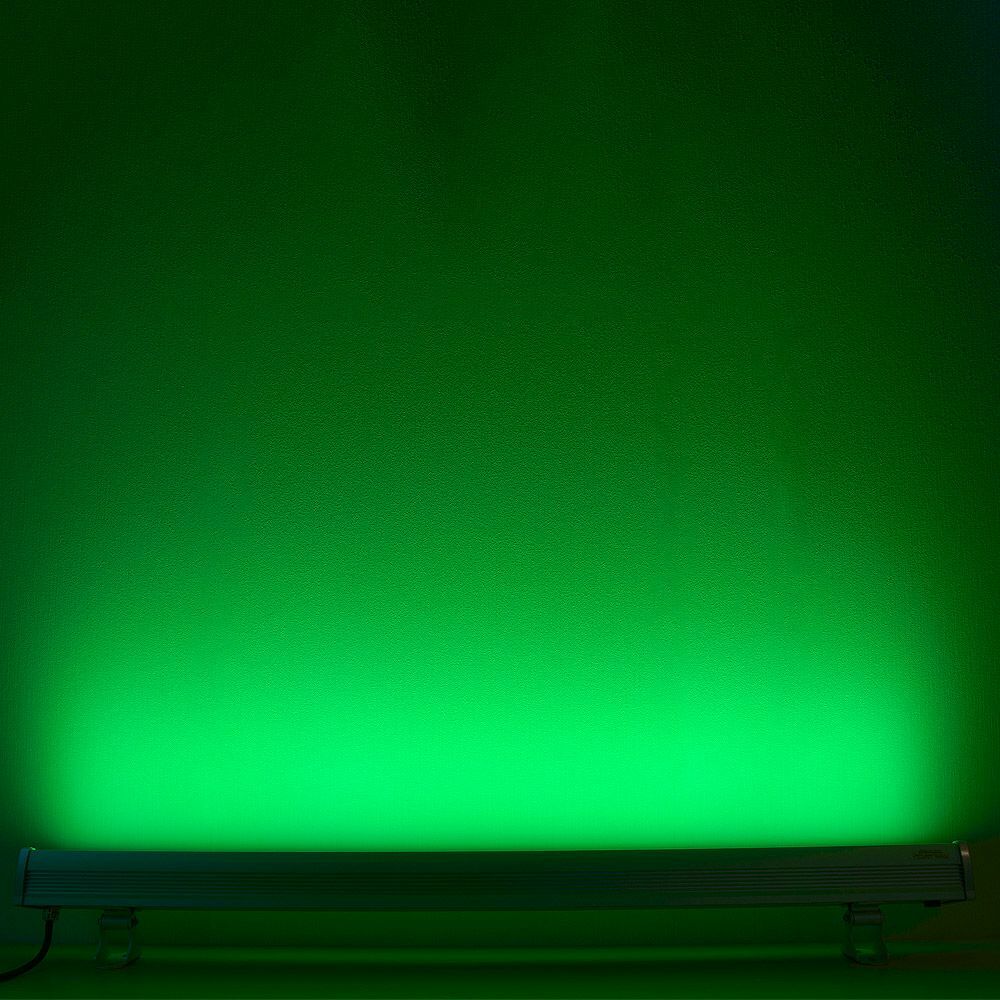

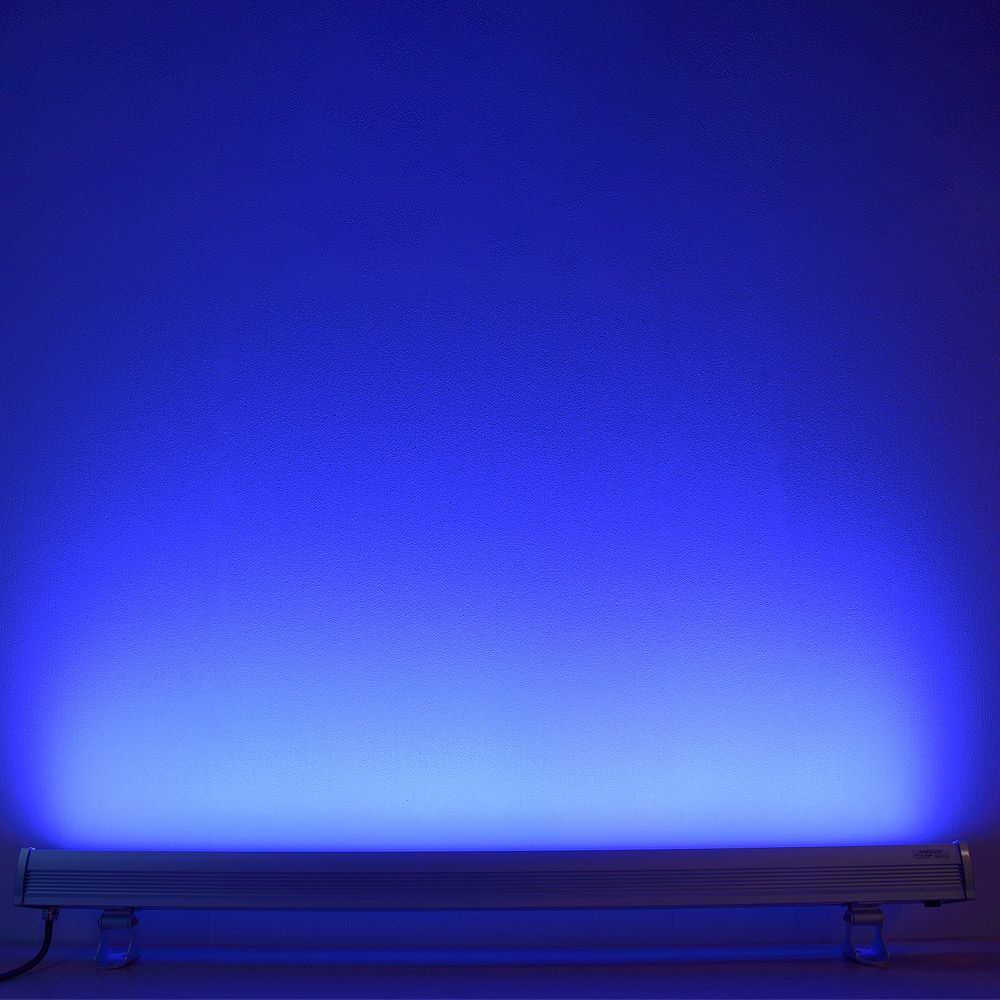

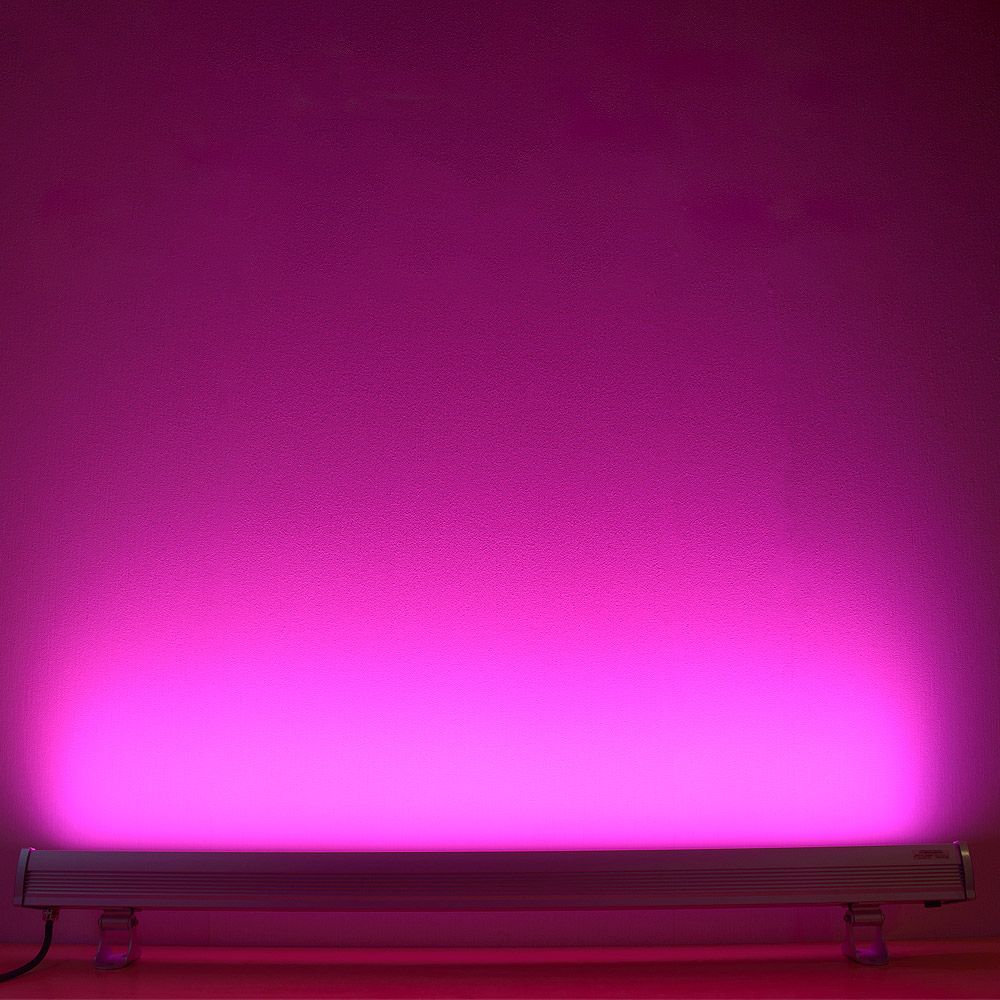

Our LED wall washer DMX is designed to cast a blanket of light over walls with a beautiful 15x60-degree beam angle. This will add a splash of colour for gorgeous ambient lighting, perfect for attractive lighting effects.

Installation

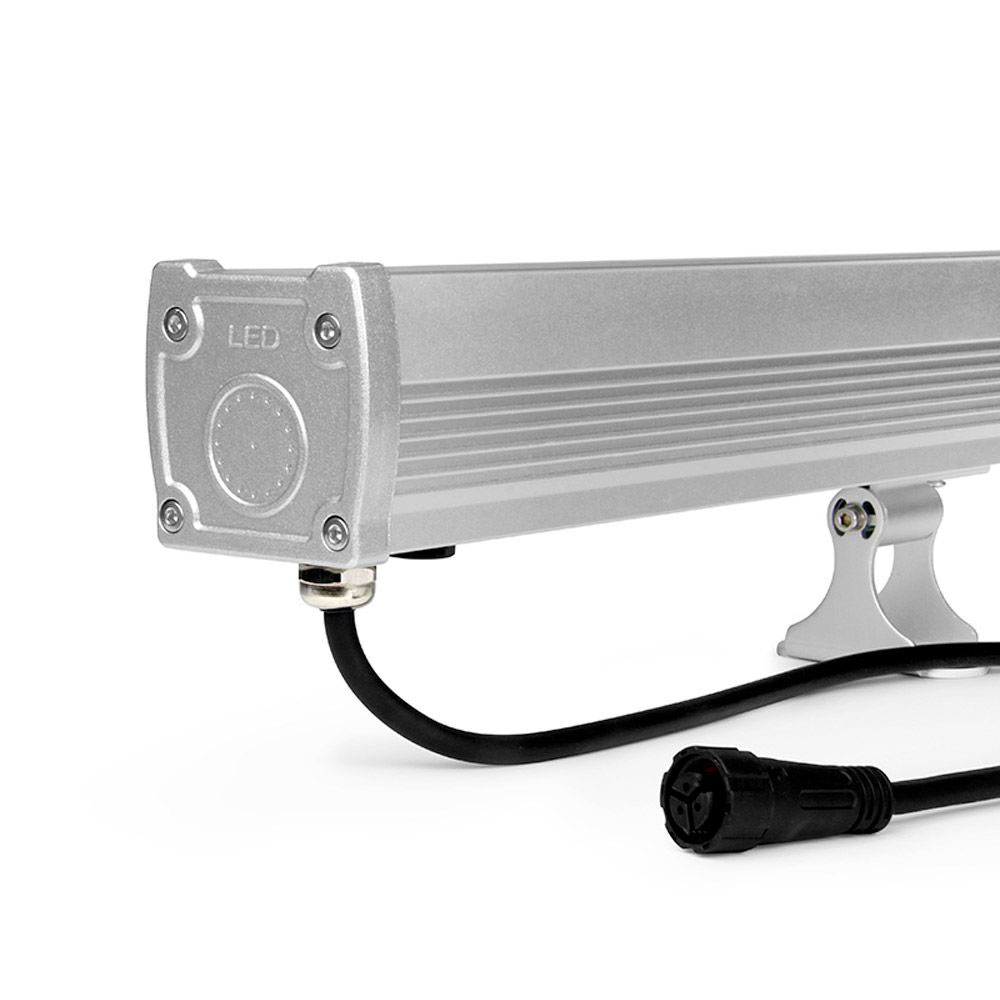

The DMX LED wall washer is supplied with rotating fixing brackets that are screwed into place. With an IP66 rating, it is perfect for both indoor and outdoor lighting. The angle can be adjusted to a maximum 180-degree angle.

The main control feature integrated into the batten includes RDM (Remote Device Management). This enables the various setting on the batten to be adjusted remotely from the DMX desk (RDM-enabled control desk required).

Otherwise, control your RGBW LED wall washer using the three-button user interface and digital display.

This unit has a built-in power supply and receiver, using the latest LED technology on the market. Our 5m DMX Starter Cable is required for the LED DMX RGB+CCT Wall Washer.

For more information on this product and control options, please contact our sales team. Simply Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Wall Washers through our website or contact our technical sales team.

Download Datasheet - D4-W72 Specification Sheet

Technical Specification
Product Code:    D5W72
Product Packed：    Gift box
Manufacturer：    Mi-Light / MiBoxer
Product Type：    Wall Washer
Colour：    RGB / Warm White
IP Rating：    IP66 Splashproof
Colour Temperature：    2700 - 3000K
Guarantee Period：    5 Years
Wattage：    72W
Input Voltage：    100V - 240V AC
Connectivity：    DMX 512 protocols
Size：    L1020mm X W64mm X H62mm
Beam Angle:    15x60 degree
CRI Rating (greater than)：    CRI >80
Dimmable:    Yes
Average LED life Hrs：    50,000
Power Factor >：    0.9
Wireless Range：    Up to 30 metres
Operating Temp：    -20~45°C
Luminous Flux - Red：    560LM
Luminous Flux - Green：    1080LM
Luminous Flux - Blue：    300LM
Luminous Flux - WW：    2600LM
