This RGBW DMX wall controller is available from our excellent MiLight product range. Featuring an attractive white glass finish, it has fully touch-sensitive controls. Perfect for controlling RGBW DMX512 LED lighting such as LED strip lights.

Using high-quality touch controls, this DMX RGBW LED control wall panel features:
Easy switching (On/Off)
4 zone control
Smooth colour selection
Smooth dimming
Instant white selection
Pre-programmed dynamic modes
RF compatible

RF Control
When using the RF system, an unlimited number of receivers/lights can be paired to each zone on the wall panel. It is possible to control multiple products in each of the four zones. Simply pair each product with your chosen zone.

DMX Control
When used as a DMX RGBW control panel, simply connect a DMX cable from the wall panel to your DMX decoders or DMX-compatible lighting product. This will send a DMX signal between the two, allowing you to control them using standard DMX512 protocols.

In addition to the DMX512 protocols and the RF transmitter built into the wall panel, it is also possible to pair a 2.4GHz handset or 2.4GHz wall panel to the X1 wall panel to control it remotely.

Installation

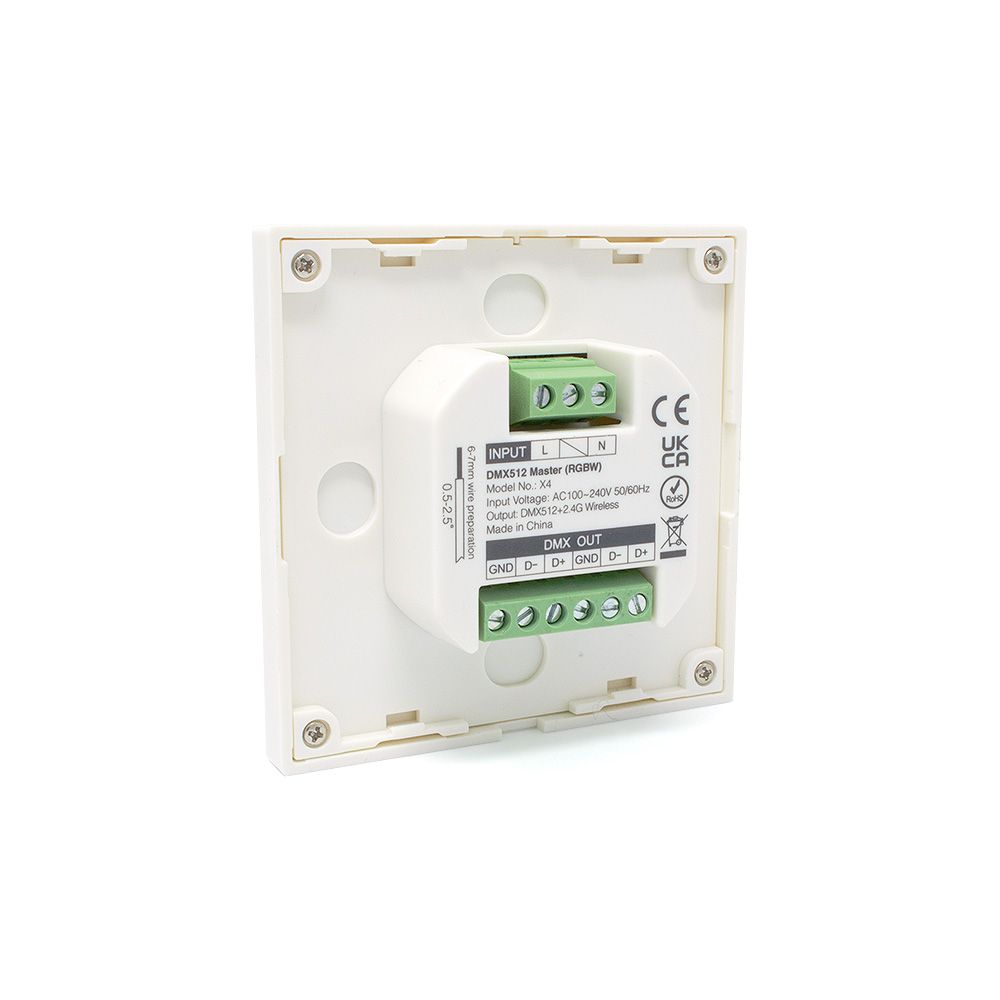

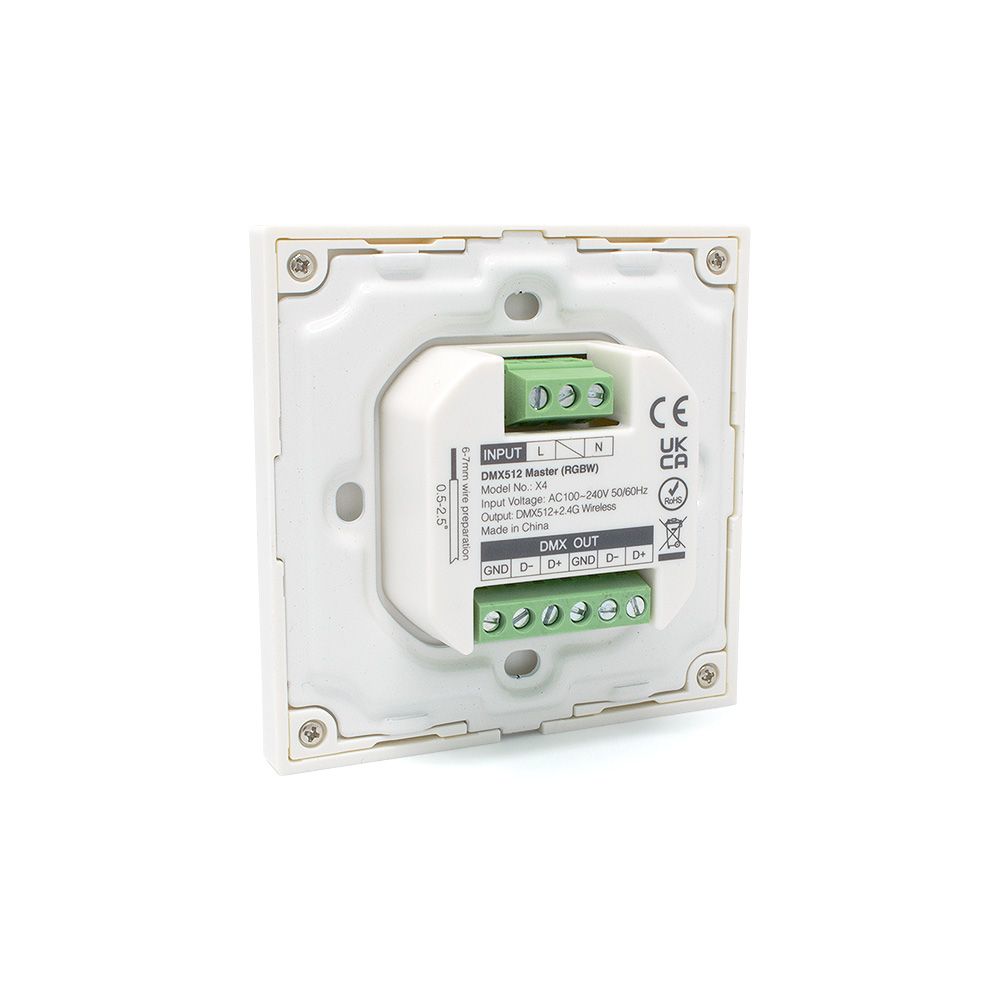

This RGBW DMX control wall panel is easy to install. Simply wire your panel up to a mains supply, making sure an input voltage of AC 100-240V is being used. The panel should also be connected to your DMX lighting using a three-core screened DMX cable.

For more information on this product and control options, please contact our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Controls through our website or contact our technical sales team.

Download Datasheet -X4 Specification Sheet

Technical Specification
Product Code:    X4
Product Packed:    Gift box
Manufacturer:    Mi-Light / MiBoxer
Product Type:    Controller / Receiver
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Input Voltage:    100V - 240V AC
Connectivity:    DMX 512 protocols
Size:    L86 x W26 x H86mm
Dimmable:    No
Wireless Range:    Up to 30 metres
Transmitting Power:    6dBm
Operation Frequency:    DMX512 + 2.4G Wireless
Operating Temp:    -20~60°C
Total Output:    DMX512 + 2.4G Wireless
